Detailed Description
Key Features

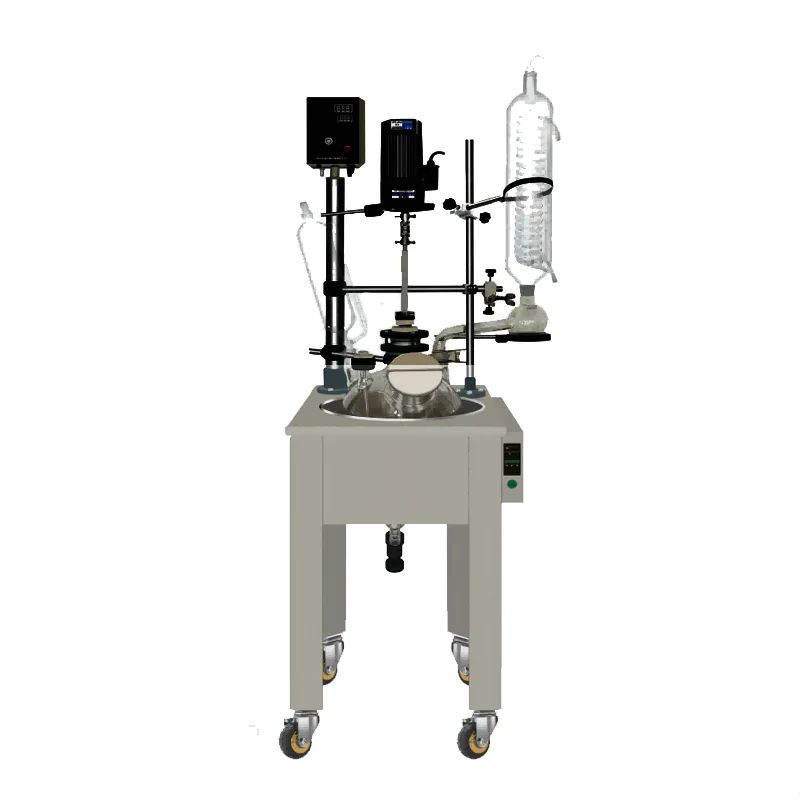

The single layer reactor boasts a large 100L barrel-type vessel for substantial reaction volumes.
Integrated stainless steel stirring paddle with fluorine coating ensures corrosion resistance and durability in the single layer reactor.
Adjustable stirring speed of 0–450 rpm powered by a 120 W motor provides effective mixing in the single layer reactor.
High heating power of 9.0 kW with digital temperature control ensures stable heating in the single layer reactor up to 200°C.
Optional features such as cooling coil, explosion-proof motor, and insulation layer enhance the single layer reactor’s safety and versatility.
Robust frame-type rack provides secure support during operation of the single layer reactor.
Equipped with a 2000 ml constant pressure funnel and 125 mm solid feeding port for easy material handling in the single layer reactor.
Technical Specifications
Material Capacity: 100 L
Vessel Type: Barrel type (optional)
Stirring Paddle: Stainless steel with fluorine material, integrated weldless design
Rotational Speed: 0–450 rpm
Motor Power: 120 W
Heating Power: 9.0 kW
Temperature Control: Digital
Temperature Range: Room temperature to 200°C
Control Accuracy: ±1°C
Constant Pressure Funnel: 2000 ml
Solid Feeding Port: 125 mm
Cooling Coil: Optional
Rack Type: Frame type
Explosion-proof Motor: Optional
Insulation Layer: Optional
Power Supply: 380V / 50Hz
Compatible Equipment
Vacuum Pump: Optimizes vacuum distillation processes in the single layer reactor.
Cooling Circulator: Works with the optional cooling coil to maintain precise temperatures during reactions in the single layer reactor.
Heating Circulator: Provides consistent heat source supporting the single layer reactor’s water or oil bath system.
Vacuum Controller: Ensures stable pressure for safe operation of the single layer reactor.
Condenser: Facilitates solvent recovery and enhances efficiency of the single layer reactor during distillation.
Advantages of the Single Layer Reactor
The single layer reactor combines a large 100L capacity with precise digital temperature control, delivering stable and efficient reaction conditions. Its 9.0 kW heating power and reliable stirring system make the single layer reactor suitable for a wide range of chemical synthesis and processing tasks. With optional safety and performance enhancements, the single layer reactor is a flexible and durable choice for labs and pilot production.
Watch Product Demonstrations
Explore real-world performance and applications in our product demo videos. Visit our video library for more insights and demonstrations.
Explore More in Our Single Layer Reactor Collection
Explore more high-performance models in our single layer reactor category for scalable and reliable chemical processing.
Shipping Information
We provide worldwide shipping for all laboratory equipment. Every order is carefully packaged to ensure safe delivery. If the item is in stock, it will be shipped within 3–7 business days after payment confirmation. For out-of-stock items, we will inform you of the estimated shipping time based on the specific product.
Shipping Methods: DHL, FedEx, UPS, or sea freight (depending on order size and destination)
Estimated Delivery Time:
Asia: 5–10 business days
Europe & North America: 7–12 business days
South America & Africa: 10–15 business days
Sea freight: subject to actual transit time
Tracking: A tracking number will be provided via email once the shipment has been dispatched.
Customs & Duties: Buyers are responsible for any import taxes or customs duties required by their country or region.
For bulk orders, custom packaging, or special shipping arrangements, please contact our team for personalized assistance at lab@equilrxnlab.com.
Product specifications
| Model | AKDF-10L | AKDF-20L | AKDF-30L | AKDF-50L | AKDF-100L |
|---|---|---|---|---|---|
| Material Capacity (L) | 10 | 20 | 30 | 50 | 100 |
| Vessel Type | Barrel type (Optional) | ||||
| Stirring Paddle | Stainless steel with fluorine material, integrated paddle-weldless | ||||
| Rotational Speed (rpm) | 0-450 | ||||
| Motor Power (W) | 120 | 120 | 120 | 120 | 120 |
| Heating Power (KW) | 3 | 4 | 5 | 6 | 9 |
| Temperature Control | Digital temperature control | ||||
| Temperature Range (°C) | Room temperature to 200°C | ||||
| Control Accuracy | ±1°C | ||||
| Constant Pressure Funnel (ml) | 1000 | 2000 | |||
| Solid Feeding Port (mm) | 125 | ||||
| Cooling Coil | Optional | ||||
| Rack Type | Frame type | ||||
| Explosion-proof Motor | Optional | ||||
| Insulation Layer | Optional | ||||
| Power Supply | 220V/50Hz | 380V/50Hz | |||
introduce
Application Scenarios
Chemical synthesis: Ideal for organic synthesis and batch reactions requiring precise temperature control up to 200°C.
Pharmaceutical research: Used for developing active pharmaceutical ingredients (APIs) with consistent reaction conditions.
Polymerization: Supports polymer research by providing uniform heating and stirring for polymer formation.
Crystallization: Facilitates controlled crystallization processes in labs and pilot-scale production.
Biochemical reactions: Suitable for fermentation and enzymatic reactions needing stable temperature and mixing.
Fine chemical production: Enables high-purity compound synthesis with accurate temperature and stirring control.
Hazardous environments: Optional explosion-proof motor allows safe operation in volatile chemical processes.
Temperature-sensitive processes: Cooling coil option provides temperature regulation for sensitive reactions.
Pilot scale experiments: 100L capacity supports scale-up from lab research to pilot production.
Long-duration reactions: Sturdy frame design ensures stability during extended reaction times.
peculiarity
Full Copper Brushless Motor
Pure Copper Motor Coil, High Torque at Low Speed, Stepless Speed Regulation, Low Noise, Long Lifespan
Spiral Condenser
The inner tube is spiral-shaped, providing a larger cooling surface area for more effective condensation
Sealing Device
Constructed from PTFE with CNC precision, featuring stainless steel bearings and fluororubber seals for resistance to acidic and alkaline gases. Reinforced with a plastic-coated aluminum flange to ensure stable stirring without tilting or wobbling.
Stainless Steel Pot Chamber
High Borosilicate Glass Parts in Contact with Materials Made from High Borosilicate Glass and PTFE (Polytetrafluoroethylene), Stable Performance with Minimal Chemical Reaction with Materials
Multiple stirring paddles available for your selection
According to the different properties and viscosities of materials, a variety of stirring paddles are available for your selection. The standard configuration includes ABCD types of stirring rods, with the A-type paddle recommended for the bottle neck, and custom-made EF and G types of stirring rods are available as well
