Detailed Description
Key Features of the Pilot-scale Glass Reactor
10 L material capacity with optional barrel-type vessel
Integrated stirring paddle made from stainless steel coated with fluorine for corrosion resistance
Stirring speed adjustable from 0 to 450 rpm powered by a 120 W motor
Powerful 3.0 kW heating system for fast and stable temperature rise
Digital temperature control with accuracy of ±1°C, ranging from room temperature to 200°C
Large 2000 ml constant pressure funnel for controlled addition of reagents
Generous 125 mm solid feeding port for adding solids with ease
Optional cooling coil for enhanced reaction control
Frame type rack providing sturdy support and easy handling
Explosion-proof motor and insulation layer available as optional safety features
Compatible with standard 220V / 50Hz power supply
Technical Specifications
Material Capacity: 10 L
Vessel Type: Barrel type (optional)
Stirring Paddle: Stainless steel with fluorine coating, integrated paddle (weldless)
Rotational Speed: 0–450 rpm
Motor Power: 120 W
Heating Power: 3.0 kW
Temperature Control: Digital
Temperature Range: Room temperature to 200°C
Control Accuracy: ±1°C
Constant Pressure Funnel Volume: 2000 ml
Solid Feeding Port Diameter: 125 mm
Cooling Coil: Optional
Rack Type: Frame type
Explosion-proof Motor: Optional
Insulation Layer: Optional
Power Supply: 220V / 50Hz
Recommended Complementary Equipment
Magnetic Stirrer: Enhances mixing capabilities when precise control is needed
Vacuum Pump: Useful for low-pressure or vacuum-assisted reactions
Temperature Circulator: Provides stable thermal regulation when paired with the cooling coil option
Glass Condenser: Improves condensation efficiency during reflux reactions
Safety Shield: Protects operators and improves lab safety during high-temperature processes
These accessories complement the pilot-scale glass reactor by expanding its functionality and ensuring safety and process efficiency.
Highlighting the Strengths of the Pilot-scale Glass Reactor
This pilot-scale glass reactor offers robust performance with a large 10 L capacity, precise digital temperature control, and versatile stirring options. Its optional explosion-proof motor and insulation layer ensure safe operation under demanding conditions. The design caters to both research labs and pilot production environments, delivering reliable scalability and consistency.
Watch Product Demonstrations
Explore real-world performance and applications in our product demo videos. Visit our video library for more insights and demonstrations.
Explore More Cooling Solutions
Discover more about our range of single glass reactors by visiting the Single Glass Reactor category.
Shipping Information
We provide worldwide shipping for all laboratory equipment. Every order is carefully packaged to ensure safe delivery. If the item is in stock, it will be shipped within 3–7 business days after payment confirmation. For out-of-stock items, we will inform you of the estimated shipping time based on the specific product.
Shipping Methods: DHL, FedEx, UPS, or sea freight (depending on order size and destination)
Estimated Delivery Time:
Asia: 5–10 business days
Europe & North America: 7–12 business days
South America & Africa: 10–15 business days
Sea freight: subject to actual transit time
Tracking: A tracking number will be provided via email once the shipment has been dispatched.
Customs & Duties: Buyers are responsible for any import taxes or customs duties required by their country or region.
For bulk orders, custom packaging, or special shipping arrangements, please contact our team for personalized assistance at lab@equilrxnlab.com.
Product specifications
| Model | AKDF-10L | AKDF-20L | AKDF-30L | AKDF-50L | AKDF-100L |
|---|---|---|---|---|---|
| Material Capacity (L) | 10 | 20 | 30 | 50 | 100 |
| Vessel Type | Barrel type (Optional) | ||||
| Stirring Paddle | Stainless steel with fluorine material, integrated paddle-weldless | ||||
| Rotational Speed (rpm) | 0-450 | ||||
| Motor Power (W) | 120 | 120 | 120 | 120 | 120 |
| Heating Power (KW) | 3 | 4 | 5 | 6 | 9 |
| Temperature Control | Digital temperature control | ||||
| Temperature Range (°C) | Room temperature to 200°C | ||||
| Control Accuracy | ±1°C | ||||
| Constant Pressure Funnel (ml) | 1000 | 2000 | |||
| Solid Feeding Port (mm) | 125 | ||||
| Cooling Coil | Optional | ||||
| Rack Type | Frame type | ||||
| Explosion-proof Motor | Optional | ||||
| Insulation Layer | Optional | ||||
| Power Supply | 220V/50Hz | 380V/50Hz | |||
introduce
Application Scenarios
Chemical Industry Scale-Up
Suitable for scaling up chemical reactions from lab to pilot production, ensuring precise control over temperature and stirring for consistent product quality.Pharmaceutical Research and Development
Ideal for synthesizing active pharmaceutical ingredients (APIs), crystallization processes, and formulation development with accurate temperature control and safe operation.Biochemical and Bioprocess Applications
Supports fermentation, enzymatic reactions, and other biochemical processes requiring stable stirring and controlled reaction environments.Polymerization Reactions
Enables controlled polymer synthesis and copolymerization with adjustable stirring speeds and heating power for uniform molecular weight distribution.Material Science Research
Facilitates experimental synthesis of novel materials and composites, allowing precise manipulation of reaction parameters.Pilot Production Testing
Designed for testing new chemical formulations or products on a pilot scale before industrial mass production.Temperature-Sensitive Reactions
Digital temperature control with ±1°C accuracy ensures the safe handling of thermally sensitive compounds and reactions.Customizable Safety Features
Optional explosion-proof motor and insulation layers enhance safety during hazardous or exothermic reactions.Academic and Industrial Laboratories
Widely used in educational and industrial labs for practical training, research, and small-batch production.
peculiarity
Full Copper Brushless Motor
Pure Copper Motor Coil, High Torque at Low Speed, Stepless Speed Regulation, Low Noise, Long Lifespan
Spiral Condenser
The inner tube is spiral-shaped, providing a larger cooling surface area for more effective condensation

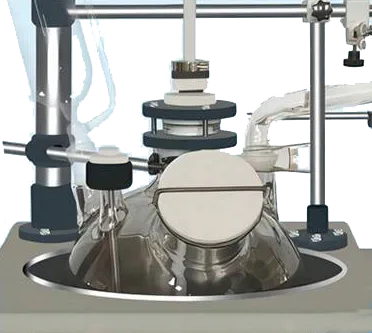

Sealing Device
Constructed from PTFE with CNC precision, featuring stainless steel bearings and fluororubber seals for resistance to acidic and alkaline gases. Reinforced with a plastic-coated aluminum flange to ensure stable stirring without tilting or wobbling.
Stainless Steel Pot Chamber
High Borosilicate Glass Parts in Contact with Materials Made from High Borosilicate Glass and PTFE (Polytetrafluoroethylene), Stable Performance with Minimal Chemical Reaction with Materials
Multiple stirring paddles available for your selection
According to the different properties and viscosities of materials, a variety of stirring paddles are available for your selection. The standard configuration includes ABCD types of stirring rods, with the A-type paddle recommended for the bottle neck, and custom-made EF and G types of stirring rods are available as well
