Detailed Description
Key Features

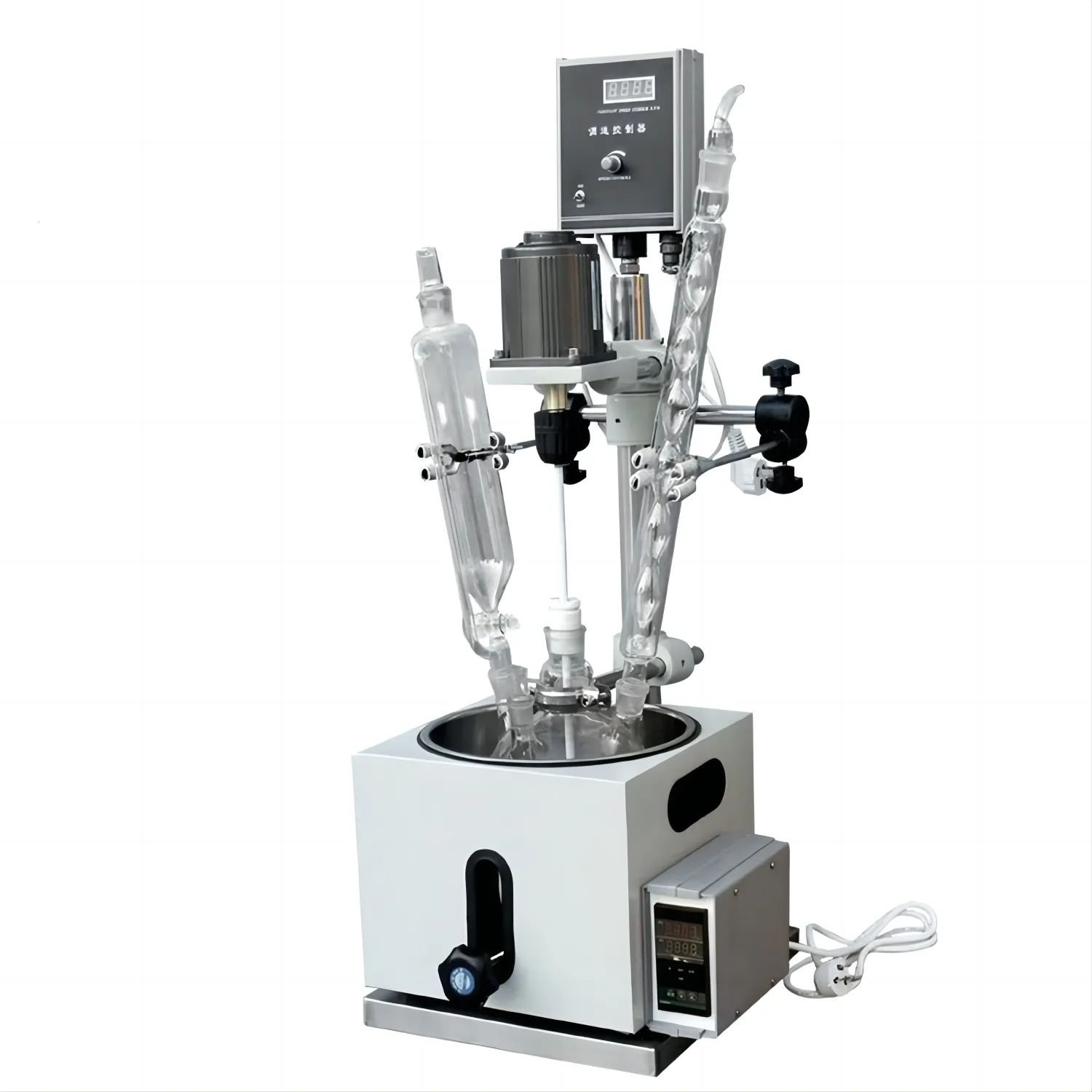

Integrated Glass Reactor with Oil Bath for uniform thermal transfer and stable operation.
Ball-type glass vessel offers better mixing dynamics and chemical visibility.
Stainless steel stirring paddle with fluorine coating is weldless, corrosion-resistant, and easy to clean.
Digital temperature control system with ±1°C accuracy for consistent results.
High rotational speed up to 1350 rpm supports efficient reaction processes.
Optional explosion-proof motor and insulation layer for enhanced safety and adaptability.
Technical Specifications
Material Capacity: 3 L
Vessel Type: Ball type
Stirring Paddle: Stainless steel with fluorine material, integrated paddle (weldless)
Rotational Speed: 0–1350 rpm
Motor Power: 120 W
Heating Power: 1.5 kW
Temperature Control: Digital
Temperature Range: Room temperature to 200°C
Control Accuracy: ±1°C
Constant Pressure Funnel: 500 ml
Solid Feeding Port: 50 mm
Cooling Coil: Not customizable
Rack Type: Baseplate frame
Explosion-proof Motor: Optional
Insulation Layer: Optional
Power Supply: 220V / 50Hz
Compatible Equipment
Recirculating Chiller – Provides precise cooling for better temperature regulation when paired with the Glass Reactor with Oil Bath.
Vacuum Pump – Essential for vacuum-assisted distillation, enhancing the efficiency of low-pressure reactions.
Rotary Evaporator – Ideal for solvent recovery post-reaction, often used together with glass reactors.
Thermal Oil Circulator – Can be used to maintain consistent oil bath temperatures in extended reaction runs.
Performance Highlight
This Glass Reactor with Oil Bath combines accurate temperature control, smooth high-speed mixing, and chemical resistance, making it an ideal solution for research labs and pilot-scale synthesis. The 3L capacity is optimal for mid-sized reactions, and the oil bath ensures even heat distribution, improving reaction reproducibility and safety.
Watch Product Demonstrations
Explore real-world performance and applications in our product demo videos. Visit our video library for more insights and demonstrations.
Explore Related Products
Browse more options in our Glass Reactor with Oil Bath category for scalable solutions in laboratory synthesis.
Shipping Information
We provide worldwide shipping for all laboratory equipment. Every order is carefully packaged to ensure safe delivery. If the item is in stock, it will be shipped within 3–7 business days after payment confirmation. For out-of-stock items, we will inform you of the estimated shipping time based on the specific product.
Shipping Methods: DHL, FedEx, UPS, or sea freight (depending on order size and destination)
Estimated Delivery Time:
Asia: 5–10 business days
Europe & North America: 7–12 business days
South America & Africa: 10–15 business days
Sea freight: subject to actual transit time
Tracking: A tracking number will be provided via email once the shipment has been dispatched.
Customs & Duties: Buyers are responsible for any import taxes or customs duties required by their country or region.
For bulk orders, custom packaging, or special shipping arrangements, please contact our team for personalized assistance at lab@equilrxnlab.com.
Product specifications
| Model | AKDF-1L | AKDF-2L | AKDF-3L | AKDF-5L |
|---|---|---|---|---|
| Material Capacity (L) | 1 | 2 | 3 | 5 |
| Vessel Type | Ball type | |||
| Stirring Paddle | Stainless steel with fluorine material, integrated paddle-weldless | |||
| Rotational Speed (rpm) | 0-1350 | |||
| Motor Power (W) | 120 | 120 | 120 | 120 |
| Heating Power (KW) | 1.2 | 1.2 | 1.5 | 2 |
| Temperature Control | Digital temperature control | |||
| Temperature Range (°C) | Room temperature to 200°C | |||
| Control Accuracy | ±1°C | |||
| Constant Pressure Funnel (ml) | 250 | 500 | ||
| Solid Feeding Port (mm) | 50 | 50 | ||
| Cooling Coil | Not customizable | |||
| Rack Type | Baseplate frame | |||
| Explosion-proof Motor | Optional | |||
| Insulation Layer | Optional | |||
| Power Supply | 220V/50Hz | |||
introduce
Application Scenarios
Chemical synthesis: Ideal for precise heating and stirring in organic and inorganic chemical reactions using the glass reactor with oil bath.
Pharmaceutical research: Widely used for drug formulation and reaction optimization under controlled temperature conditions.
Material science: Perfect for polymerization and material modification processes requiring uniform heating via the oil bath.
Food industry: Suitable for flavor extraction, concentration, and other thermal processing tasks using the glass reactor with oil bath.
Environmental testing: Used for sample preparation and chemical analysis that demand stable temperature control and stirring.
Academic research: Essential in universities and laboratories for experiments involving controlled reactions with digital temperature control.
Fine chemicals production: Supports small-scale batch production requiring accurate stirring and temperature maintenance.
Catalyst testing: Enables evaluation of catalyst performance under heated conditions with reliable temperature precision.
peculiarity
Full Copper Brushless Motor
Pure Copper Motor Coil, High Torque at Low Speed, Stepless Speed Regulation, Low Noise, Long Lifespan
Spiral Condenser
The inner tube is spiral-shaped, providing a larger cooling surface area for more effective condensation
Sealing Device
Constructed from PTFE with CNC precision, featuring stainless steel bearings and fluororubber seals for resistance to acidic and alkaline gases. Reinforced with a plastic-coated aluminum flange to ensure stable stirring without tilting or wobbling.
Reaction Flask Water/Oil Bath
Features a 304 stainless steel heating ring with PID temperature control for precise temperature regulation and digital temperature display.
Multiple stirring paddles available for your selection
According to the different properties and viscosities of materials, a variety of stirring paddles are available for your selection. The standard configuration includes ABCD types of stirring rods, with the A-type paddle recommended for the bottle neck, and custom-made EF and G types of stirring rods are available as well
