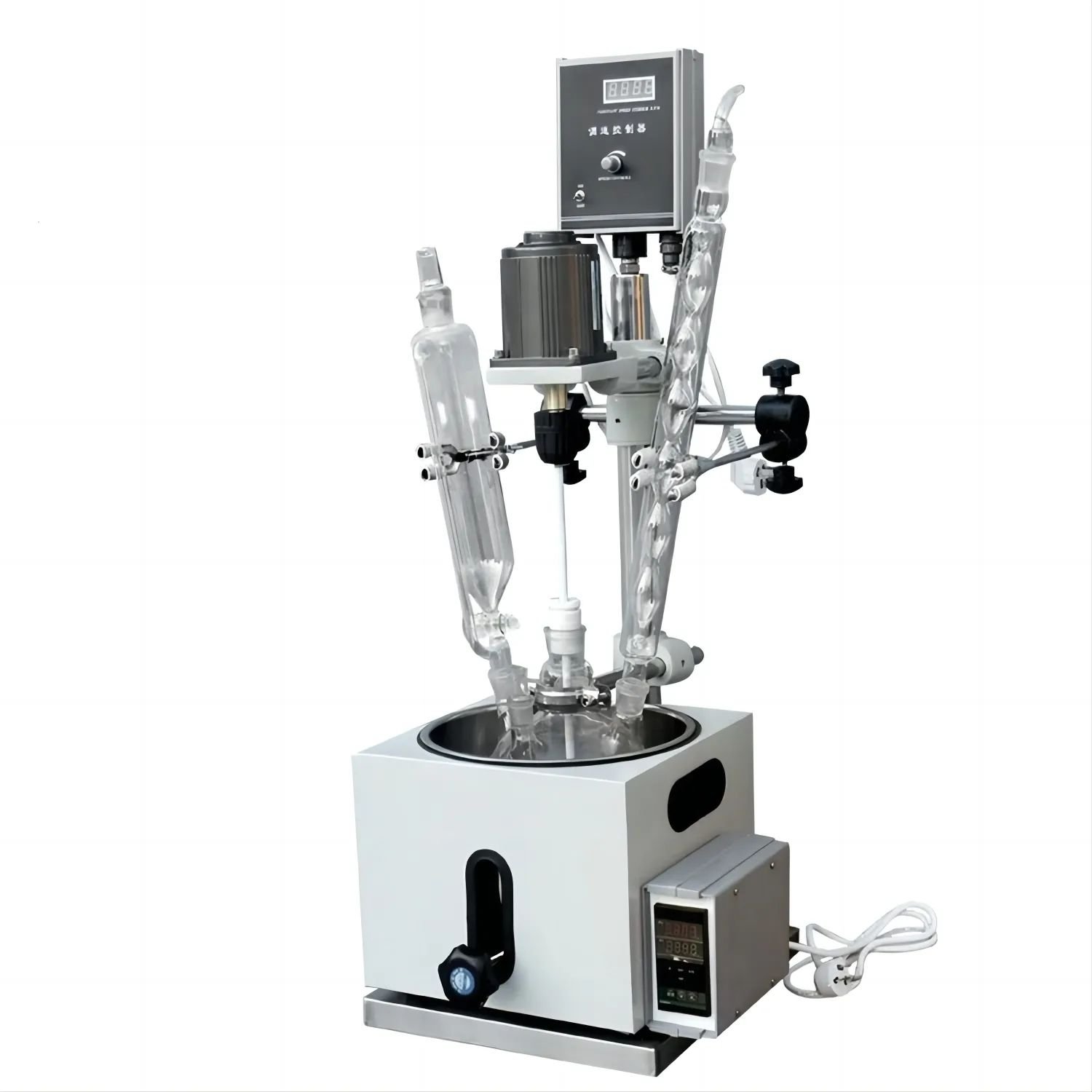

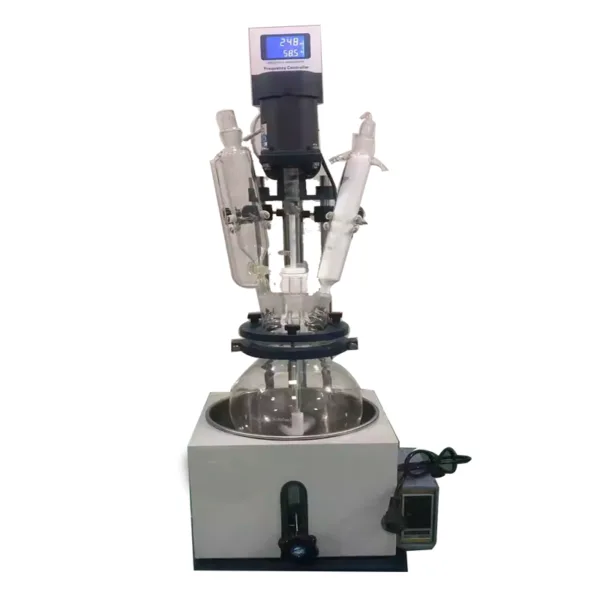

AKDF-5L Small Glass Reactor
Efficient and Reliable Small Glass Reactor for Your Laboratory
The AKDF-5L Small Glass Reactor is designed to meet the needs of medium-scale laboratory experiments. Whether you’re conducting chemical reactions, synthesis, or distillation, this reactor delivers high precision and reliability. With its 5L capacity, it strikes the perfect balance between size and performance, making it ideal for a variety of applications in scientific research and development.
Key Features and Specifications
- Material Capacity: 5L
- Container Type: Spherical
- Stirring Blade: Stainless steel and fluorine composite, seamless design (no welding)
- Rotating Speed: 0-1350 rpm
- Motor Power: 120W
- Heating Power: 2KW
- Temperature Control: Digital temperature control
- Temperature Range: Room temperature to 200°C
- Temperature Accuracy: ±1°C
- Pressure Funnel: 2000ml
- Solid Feed Port Size: 50mm
Precision Temperature Control for Accurate Results
Equipped with a powerful 2KW heating system, the AKDF-5L Small Glass Reactor ensures precise and reliable heating from room temperature to 200°C. The digital temperature control allows for fine-tuned adjustments, making it easier to maintain stable conditions throughout your reaction process.
Versatile and Durable Stirring
The reactor features a stainless steel and fluorine composite stirring blade. This seamless design prevents leaks and ensures effective mixing, even with high-viscosity materials. With a rotating speed range of 0-1350 rpm, the reactor is capable of handling various substances, providing flexibility for a wide range of laboratory applications.
Perfect for Chemical Synthesis and Distillation
The Small Glass Reactor is ideal for chemical synthesis, distillation, and other laboratory processes. Its 5L capacity is well-suited for medium-scale research, while the 2000ml pressure funnel and 50mm solid feed port offer versatility when introducing solid or liquid feed materials. This makes the reactor adaptable for different experimental setups and ensures accurate, reproducible results.
Product specifications
| Model | AKDF-1L | AKDF-2L | AKDF-3L | AKDF-5L | AKDF-10L | AKDF-20L | AKDF-30L | AKDF-50L | AKDF-100L |
|---|---|---|---|---|---|---|---|---|---|
| Material Capacity (L) | 1 | 2 | 3 | 5 | 10 | 20 | 30 | 50 | 100 |
| Vessel Type | Ball type | Barrel type (Optional) | |||||||
| Stirring Paddle | Stainless steel with fluorine material, integrated paddle-weldless | ||||||||
| Rotational Speed (rpm) | 0-1350 | 0-450 | |||||||
| Motor Power (W) | 120 | 120 | 120 | 120 | 120 | 120 | 120 | 120 | 120 |
| Heating Power (KW) | 1.2 | 1.2 | 1.5 | 2 | 3 | 4 | 5 | 6 | 9 |
| Temperature Control | Digital temperature control | ||||||||
| Temperature Range (°C) | Room temperature to 200°C | ||||||||
| Control Accuracy | ±1°C | ||||||||
| Constant Pressure Funnel (ml) | 250 | 500 | 1000 | 2000 | |||||
| Solid Feeding Port (mm) | 50 | 125 | |||||||
| Cooling Coil | Not customizable | Optional | |||||||
| Rack Type | Baseplate frame | Frame type | |||||||
| Explosion-proof Motor | Optional | ||||||||
| Insulation Layer | Optional | ||||||||
| Power Supply | 220V/50Hz | 380V/50Hz | |||||||
introduce
Product features:
1. Material Contact Parts: Made from high borosilicate glass (expansion coefficient 3.3) and PTFE, ensuring stable performance with minimal chemical reactions with materials. Convenient to use.
2. Stirring and Heating Controls: ON-OFF switch for easy operation.
3. Constant Temperature Bath : Digital temperature display with a K-type sensor and stainless steel probe for accurate and rapid temperature control.
4. Stirring Mechanism : Crescent-shaped stirrer with 304 stainless steel and PTFE blades. The stirring rod is 304 stainless steel wrapped in PTFE tubing for high strength, corrosion resistance, and durability.
5. Main Support Frame : Made from corrosion-resistant spray-coated cold plate and aluminum alloy, offering excellent corrosion resistance and oxidation resistance. The pot chamber is made of stainless steel for durability and aesthetic appeal.
6. Electronic Speed Control : Adjustable speed with a digital display on the control box for stable performance and ease of use.
7. Stirring System : Features ceramic bearings and mechanical seals to prevent wear and tear on the stirring rod, with high-temperature resistance, wear resistance, and effective sealing.
8. Vacuum Pressure Gauge : Displays real-time vacuum pressure with a pointer indicator. Includes dual fuse protection for stirring and heating functions.
peculiarity

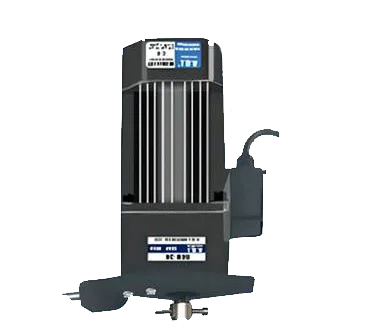

Full Copper Brushless Motor
Pure Copper Motor Coil, High Torque at Low Speed, Stepless Speed Regulation, Low Noise, Long Lifespan

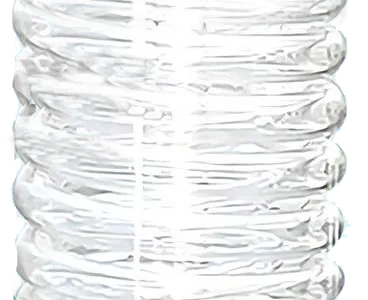

Spiral Condenser
The inner tube is spiral-shaped, providing a larger cooling surface area for more effective condensation

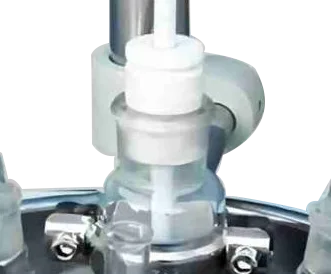

Sealing Device
Constructed from PTFE with CNC precision, featuring stainless steel bearings and fluororubber seals for resistance to acidic and alkaline gases. Reinforced with a plastic-coated aluminum flange to ensure stable stirring without tilting or wobbling.

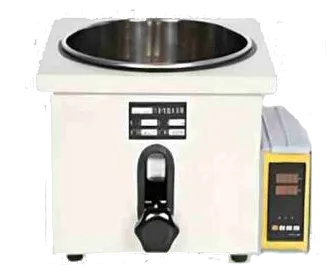

Reaction Flask Water/Oil Bath
Features a 304 stainless steel heating ring with PID temperature control for precise temperature regulation and digital temperature display.

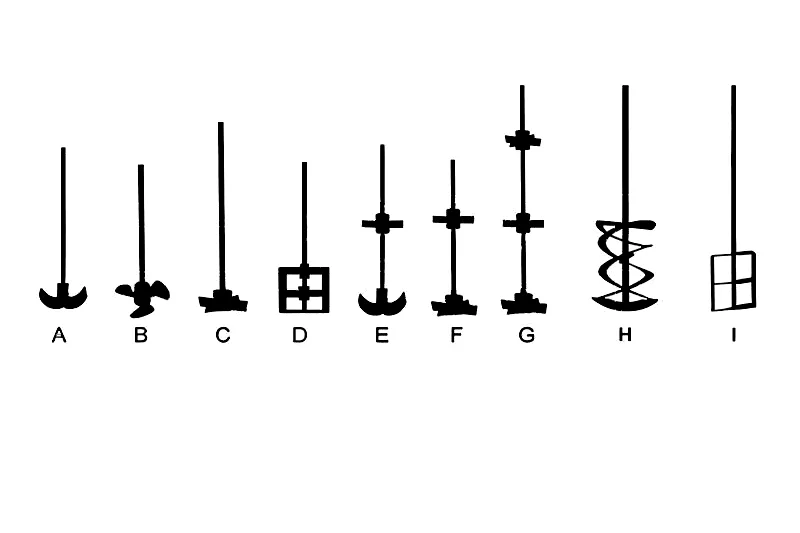

Multiple stirring paddles available for your selection
According to the different properties and viscosities of materials, a variety of stirring paddles are available for your selection. The standard configuration includes ABCD types of stirring rods, with the A-type paddle recommended for the bottle neck, and custom-made EF and G types of stirring rods are available as well
Scope of Application
Biopharmaceuticals
Scientific Research Experiments
Food Processing
