Detailed Description

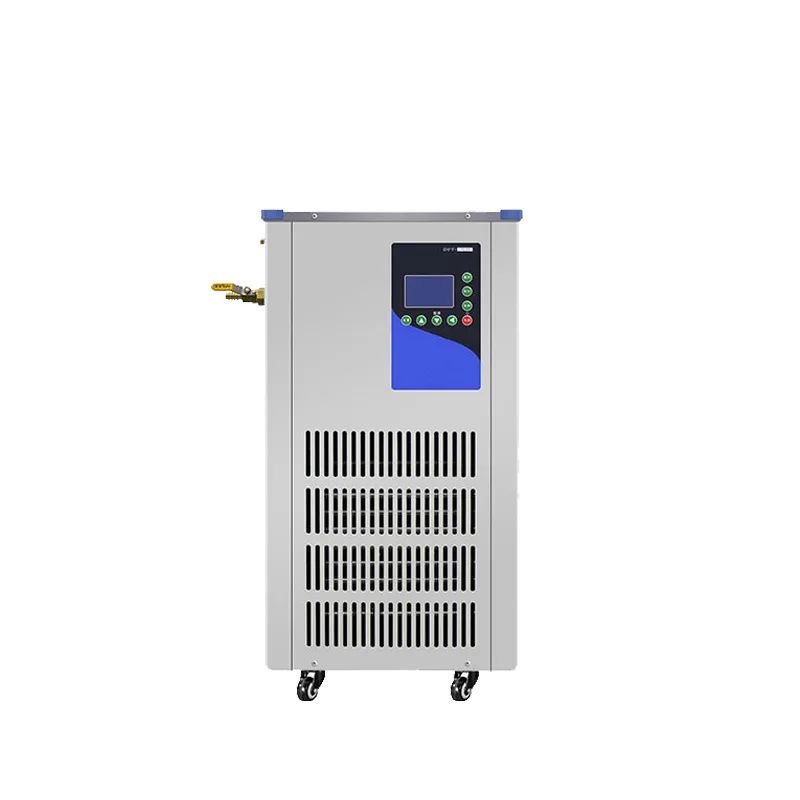

Key Features of the Low-Temp Coolant Pump AKDW-5L/-20
Durable 5-liter stainless steel tank designed for long-lasting use in the low-temp coolant pump
Operating temperature range from -20°C to room temperature with ±2°C stability ensures precise cooling performance
User-friendly LCD interface for setting temperature freely on the low-temp coolant pump
Multiple safety protections including delay start, phase failure, overcurrent, and overheat safeguard built into the low-temp coolant pump
Cooling capacity up to 945W at 10°C and 780W at -20°C for effective temperature control
Circulating pump power of 60W, flow rate of 32 L/min, and lift height of 3.8 meters ensure reliable coolant circulation in the low-temp coolant pump
Compact and efficient design with tank dimensions Ø220 × 180 mm and external circulation interface size 8×10 mm
Technical Specifications of the Low-Temp Coolant Pump AKDW-5L/-20
Model: AKDW-5L/-20
Cooling Liquid Tank Capacity: 5 liters
Operating Temperature Range: -20°C to room temperature
Temperature Stability: ±2°C
Ambient Temperature: 5–35°C
Ambient Humidity: ≤70%
Power Supply: Single-phase 220V, 50Hz
Control Method: LCD display with freely set temperature range
Safety Features: Delay start, phase protection, overcurrent protection, overheat protection
Total Power Consumption: 550W
Total Current: 2.5A
Refrigerant: R22
Cooling Capacity: 945W at 10°C, 930W at 0°C, 900W at -10°C, 780W at -20°C
Nominal Cooling Capacity: 1200W
Circulating Pump Power: 60W
Flow Rate: 32 L/min
Lift Height: 3.8 meters
Motor Power: 53W
Condenser Heat Transfer Area: 4.2 m²
External Circulation Interface Size: 8×10 mm
Opening Size: 200 mm
Tank Inner Dimensions (Diameter × Height): Ø220 × 180 mm
Tank Material: 304 stainless steel
Compatible Equipment for the Low-Temp Coolant Pump
Laboratory reactors requiring stable cooling with the low-temp coolant pump for precise reactions
Analytical instruments like chromatography systems utilizing the low-temp coolant pump for temperature control
Pilot plant applications needing compact, reliable low-temp coolant pump solutions
Environmental test chambers maintained by the low-temp coolant pump for accurate temperature regulation
Pharmaceutical and biological sample cooling with the dependable low-temp coolant pump
Industrial process cooling using the high-performance low-temp coolant pump
Why Choose the Low-Temp Coolant Pump AKDW-5L/-20?
This low-temp coolant pump model AKDW-5L/-20 delivers exceptional performance, combining precision temperature control, safety features, and durability. With its efficient cooling capacity and robust design, the low-temp coolant pump is a trusted choice for laboratories and industries requiring consistent low-temperature coolant circulation.
Watch Product Demonstrations
Explore real-world performance and applications in our product demo videos. Visit our video library for more insights and demonstrations.
Explore More Cooling Solutions
Explore more about the low-temp coolant pump and related products at our Low-Temp Coolant Pump category page.
Shipping Information
We provide worldwide shipping for all laboratory equipment. Every order is carefully packaged to ensure safe delivery. If the item is in stock, it will be shipped within 3–7 business days after payment confirmation. For out-of-stock items, we will inform you of the estimated shipping time based on the specific product.
Shipping Methods: DHL, FedEx, UPS, or sea freight (depending on order size and destination)
Estimated Delivery Time:
Asia: 5–10 business days
Europe & North America: 7–12 business days
South America & Africa: 10–15 business days
Sea freight: subject to actual transit time
Tracking: A tracking number will be provided via email once the shipment has been dispatched.
Customs & Duties: Buyers are responsible for any import taxes or customs duties required by their country or region.
For bulk orders, custom packaging, or special shipping arrangements, please contact our team for personalized assistance at lab@equilrxnlab.com.
Product specifications
| Parameter | Specifications |
|---|---|
| Model | AKDW-5L/20 |
| Cooling Liquid Tank Capacity (L) | 5 |
| Operating Temperature Range (℃) | -20～Room Temperature |
| Temperature Stability (℃) | ±2 |
| Ambient Temperature (℃) | 5～35 |
| Ambient Humidity | ≤70% |
| Power Supply | Single-phase 220V 50Hz |
| Control Method | LCD Display, Set Temperature Range Arbitrarily |
| Safety Protection | Delay, Phase, Overcurrent, Overheat |
| Total Power (W) | 550W |
| Total Current (A) | 2.5A |
| Refrigerant | R22 |
| Cooling Capacity (W) | 10°C: 945W, 0°C: 930W, -10°C: 900W, -20°C: 780W |
| Circulating Pump Power (W) | 60W |
| Flow Rate (L/min) | 32L |
| Lift (M) | 3.8M |
| Motor Power (W) | 53W |
| Condenser Heat Transfer Area | 4.2m² |
| Nominal Cooling Capacity | 1200W |
| External Circulation Interface Size (mm) | 8×10 |
| Opening Size (mm) | 200 |
| Tank Inner Diameter and Height (mm) | Φ220×180 |
| Tank Material | 304 Stainless Steel |
introduce
Application Scenarios
Laboratory chemical reactions requiring precise cooling to prevent overheating and maintain reaction stability
Biological sample storage and temperature regulation to ensure sample integrity
Thermal control in analytical instruments for accurate testing and measurements
Pharmaceutical research and development processes needing controlled low-temperature circulation
Electronics manufacturing for cooling sensitive components during testing or production
Pilot plants and small-scale production lines requiring continuous, stable cooling operation
Environments demanding safety features like overcurrent and overheat protection for reliable performance
General industrial applications where precise temperature control enhances process efficiency and equipment protection
peculiarity
Stainless Steel Solvent Tank – Low Temperature Resistant, Anti-Corrosion, Anti-Rust
This durable stainless steel solvent tank is designed to withstand low temperatures, resist corrosion, and prevent rust, making it ideal for use in harsh chemical environments. Perfect for long-term solvent storage and laboratory applications.
Four-Ring Surround Cooling Vents for Optimal Compressor Protection
Featuring four-ring surround cooling vents, this design effectively protects the compressor, ensuring optimal performance and longevity during operation.
Stainless Steel Solvent Tank with Mounting Rod – For Secure Placement of Titrators and Sensors
Equipped with a mounting rod, this stainless steel solvent tank provides convenient and secure placement for titrators, sensors, and other accessories. Its design ensures stable support and easy access to your essential equipment.
Enclosed Magnetic Stir Bar for Stable Mixing
This fully enclosed magnetic stir bar ensures consistent stirring stability, providing reliable performance for precise mixing in various applications.
