Detailed Description

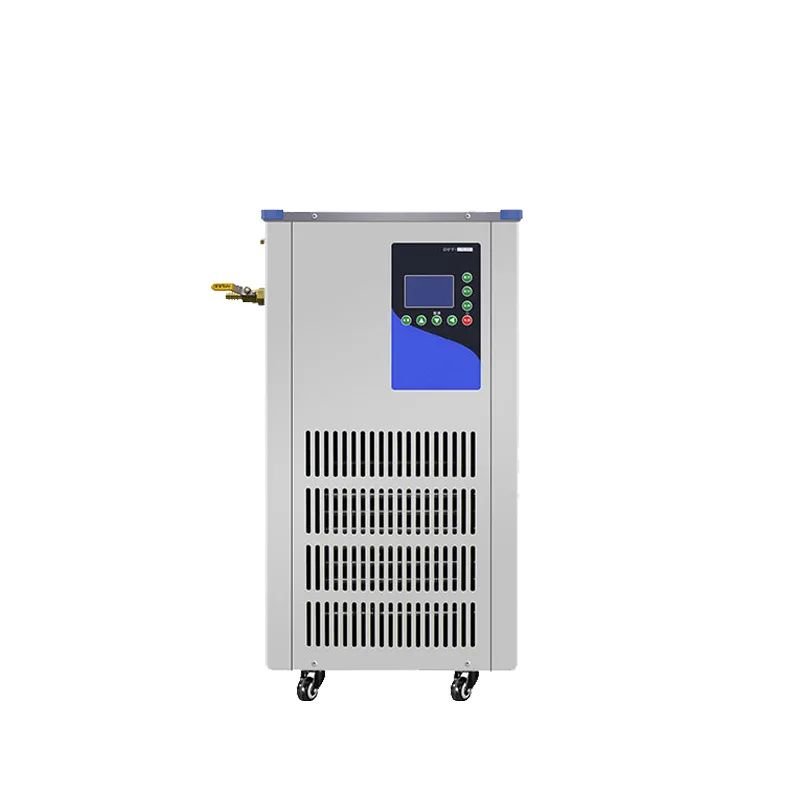

Key Features of Laboratory Refrigerated Recirculating Water Chiller
Wide operating temperature range from -30°C to room temperature with stable ±2°C control
5-liter stainless steel tank made of durable 304 stainless steel for corrosion resistance
Efficient cooling capacity up to 1200W with detailed capacity at various temperatures
LCD display control for accurate and flexible temperature adjustments
Safety features including delay start, phase protection, overcurrent, and overheat protection
Powerful circulating pump with 32 L/min flow rate and 3.8 meters lift height for effective coolant circulation
Technical Specifications
Model: AKDW-5L/-30
Cooling Liquid Tank Capacity: 5 liters
Operating Temperature Range: -30°C to room temperature
Temperature Stability: ±2°C
Ambient Temperature: 5–35°C
Ambient Humidity: ≤70%
Power Supply: Single-phase 220V, 50Hz
Total Power Consumption: 550W
Total Current: 2.5A
Refrigerant: R22
Cooling Capacity:
10°C – 945W
0°C – 930W
-10°C – 900W
-20°C – 740W
-30°C – 630W
Nominal Cooling Capacity: 1200W
Circulating Pump Power: 60W
Flow Rate: 32 L/min
Lift Height: 3.8 meters
Motor Power: 53W
Condenser Heat Transfer Area: 4.2 m²
External Circulation Interface Size: 8×10 mm
Opening Size: 200 mm
Tank Inner Dimensions (Diameter × Height): Ø220 × 180 mm
Tank Material: 304 stainless steel
Compatible Equipment for Laboratory Refrigerated Recirculating Water Chiller
Laboratory reactors: Provides stable cooling to maintain reaction temperature accuracy
Analytical instruments: Prevents overheating of sensitive devices like spectrometers and chromatographs
Cooling baths and condensers: Enhances efficiency of cooling cycles with reliable coolant flow
Laser cooling systems: Ensures consistent temperature control to protect laser components
Pilot plant equipment: Supports small-scale industrial cooling processes with precise temperature management
Highlighting the Superior Performance of Laboratory Refrigerated Recirculating Water Chiller
This laboratory refrigerated recirculating water chiller excels in providing precise, stable, and efficient low-temperature control. Its robust stainless steel tank, advanced safety features, and powerful cooling capacity make it a trusted solution for various scientific and industrial applications requiring dependable refrigeration and coolant circulation.
Watch Product Demonstrations
Explore real-world performance and applications in our product demo videos. Visit our video library for more insights and demonstrations.
Explore More Cooling Solutions
Explore more options and details at our laboratory refrigerated recirculating water chiller category page
Shipping Information
We provide worldwide shipping for all laboratory equipment. Every order is carefully packaged to ensure safe delivery. If the item is in stock, it will be shipped within 3–7 business days after payment confirmation. For out-of-stock items, we will inform you of the estimated shipping time based on the specific product.
Shipping Methods: DHL, FedEx, UPS, or sea freight (depending on order size and destination)
Estimated Delivery Time:
Asia: 5–10 business days
Europe & North America: 7–12 business days
South America & Africa: 10–15 business days
Sea freight: subject to actual transit time
Tracking: A tracking number will be provided via email once the shipment has been dispatched.
Customs & Duties: Buyers are responsible for any import taxes or customs duties required by their country or region.
For bulk orders, custom packaging, or special shipping arrangements, please contact our team for personalized assistance at lab@equilrxnlab.com.
Product specifications
| Parameter | Specifications |
|---|---|
| Model | AKDW-5L/30 |
| Cooling Liquid Tank Capacity (L) | 5 |
| Operating Temperature Range (℃) | -30～Room Temperature |
| Temperature Stability (℃) | ±2 |
| Ambient Temperature (℃) | 5～35 |
| Ambient Humidity | ≤70% |
| Power Supply | Single-phase 220V 50Hz |
| Control Method | LCD Display, Set Temperature Range Arbitrarily |
| Safety Protection | Delay, Phase, Overcurrent, Overheat |
| Total Power (W) | 550W |
| Total Current (A) | 2.5A |
| Refrigerant | R22 |
| Cooling Capacity (W) | 10°C: 945W, 0°C: 930W, -10°C: 900W, -20°C: 740W, -30°C: 630W |
| Circulating Pump Power (W) | 60W |
| Flow Rate (L/min) | 32L |
| Lift (M) | 3.8M |
| Motor Power (W) | 53W |
| Condenser Heat Transfer Area | 4.2m² |
| Nominal Cooling Capacity | 1200W |
| External Circulation Interface Size (mm) | 8×10 |
| Opening Size (mm) | 200 |
| Tank Inner Diameter and Height (mm) | Φ220×180 |
| Tank Material | 304 Stainless Steel |
introduce
Application Scenarios
Precision temperature control for chemical reactions requiring stable cooling between -30°C and room temperature
Cooling medium circulation in laboratory instruments such as reactors, distillation units, and chromatography systems
Maintaining consistent low temperatures in pharmaceutical research and development processes
Cooling of analytical devices including spectrometers and mass spectrometers to ensure accurate measurements
Thermal management in small pilot plants and experimental setups needing reliable chilled water circulation
Use in biological laboratories for enzyme assays and cell culture temperature regulation
Industrial equipment temperature control where compact and efficient refrigerated recirculating chillers are required
Support for environmental testing chambers needing precise and uniform temperature conditions
peculiarity
Stainless Steel Solvent Tank – Low Temperature Resistant, Anti-Corrosion, Anti-Rust
This durable stainless steel solvent tank is designed to withstand low temperatures, resist corrosion, and prevent rust, making it ideal for use in harsh chemical environments. Perfect for long-term solvent storage and laboratory applications.
Four-Ring Surround Cooling Vents for Optimal Compressor Protection
Featuring four-ring surround cooling vents, this design effectively protects the compressor, ensuring optimal performance and longevity during operation.
Stainless Steel Solvent Tank with Mounting Rod – For Secure Placement of Titrators and Sensors
Equipped with a mounting rod, this stainless steel solvent tank provides convenient and secure placement for titrators, sensors, and other accessories. Its design ensures stable support and easy access to your essential equipment.
Enclosed Magnetic Stir Bar for Stable Mixing
This fully enclosed magnetic stir bar ensures consistent stirring stability, providing reliable performance for precise mixing in various applications.
