Detailed Description
Key Features of Refrigerated Recirculating Chillers
Operating temperature range from -40°C to room temperature ensures versatile cooling capability.
High temperature stability of ±2°C supports sensitive laboratory processes.
Equipped with a 60W circulating pump providing a flow rate of 32 L/min and a lift height of 3.8 meters.
LCD display control allows arbitrary temperature setting, making operation simple and intuitive.
Safety features including delay start, phase protection, overcurrent, and overheat protection enhance reliability.
Compact 5-liter tank made of durable 304 stainless steel for corrosion resistance and long service life.
Uses eco-friendly refrigerant R22 with a total cooling capacity of up to 1200W.

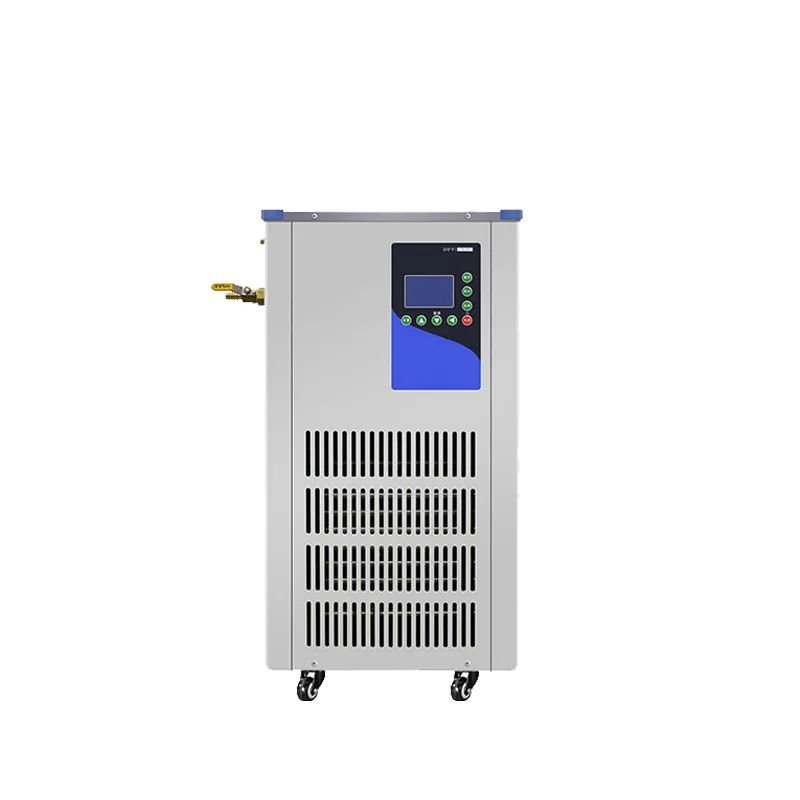

Technical Specifications of Refrigerated Recirculating Chillers AKDW-5L/-40
Cooling Liquid Tank Capacity: 5 liters
Operating Temperature Range: -40°C to room temperature
Temperature Stability: ±2°C
Ambient Temperature: 5–35°C
Ambient Humidity: ≤70%
Power Supply: Single-phase 220V, 50Hz
Total Power Consumption: 550W
Total Current: 2.5A
Refrigerant: R22
Circulating Pump Power: 60W
Flow Rate: 32 L/min
Lift Height: 3.8 meters
Motor Power: 53W
Condenser Heat Transfer Area: 4.2 m²
External Circulation Interface Size: 8×10 mm
Opening Size: 200 mm
Tank Inner Dimensions (Diameter × Height): Ø220 × 180 mm
Tank Material: 304 stainless steel
Recommended Equipment to Pair with Refrigerated Recirculating Chillers
Laboratory reactors, to maintain precise reaction temperatures using the chilled coolant.
Low-temperature baths, benefiting from stable and efficient cooling performance.
Analytical instruments requiring controlled temperature environments to ensure accuracy.
Heat exchangers needing consistent coolant flow and temperature control for optimal function.
These equipment pairings enhance the utility of refrigerated recirculating chillers by maximizing temperature control and process stability.
Highlighting the Superior Performance of Refrigerated Recirculating Chillers
The refrigerated recirculating chillers Model AKDW-5L/-40 combines advanced cooling technology with safety protections and precise temperature control, making it indispensable in laboratories and industries where temperature stability and coolant reliability are critical. Its compact design and stainless steel tank provide durability and ease of maintenance, while its versatile cooling range suits a wide range of applications.
Watch Product Demonstrations
Explore real-world performance and applications in our product demo videos. Visit our video library for more insights and demonstrations.
Explore More
Discover more high-performance refrigerated recirculating chillers tailored to your lab’s exact temperature control requirements.
Shipping Information
We provide worldwide shipping for all laboratory equipment. Every order is carefully packaged to ensure safe delivery. If the item is in stock, it will be shipped within 3–7 business days after payment confirmation. For out-of-stock items, we will inform you of the estimated shipping time based on the specific product.
Shipping Methods: DHL, FedEx, UPS, or sea freight (depending on order size and destination)
Estimated Delivery Time:
Asia: 5–10 business days
Europe & North America: 7–12 business days
South America & Africa: 10–15 business days
Sea freight: subject to actual transit time
Tracking: A tracking number will be provided via email once the shipment has been dispatched.
Customs & Duties: Buyers are responsible for any import taxes or customs duties required by their country or region.
For bulk orders, custom packaging, or special shipping arrangements, please contact our team for personalized assistance at lab@equilrxnlab.com.
Product specifications
| Parameter | Specifications |
|---|---|
| Model | AKDW-5L/40 |
| Cooling Liquid Tank Capacity (L) | 5 |
| Operating Temperature Range (℃) | -40～Room Temperature |
| Temperature Stability (℃) | ±2 |
| Ambient Temperature (℃) | 5～35 |
| Ambient Humidity | ≤70% |
| Power Supply | Single-phase 220V 50Hz |
| Control Method | LCD Display, Set Temperature Range Arbitrarily |
| Safety Protection | Delay, Phase, Overcurrent, Overheat |
| Total Power (W) | 550W |
| Total Current (A) | 2.5A |
| Refrigerant | R22 |
| Cooling Capacity (W) | 10°C: 945W, 0°C: 930W, -10°C: 900W, -20°C: 780W, -40°C: 545W |
| Circulating Pump Power (W) | 60W |
| Flow Rate (L/min) | 32L |
| Lift (M) | 3.8M |
| Motor Power (W) | 53W |
| Condenser Heat Transfer Area | 4.2m² |
| Nominal Cooling Capacity | 1200W |
| External Circulation Interface Size (mm) | 8×10 |
| Opening Size (mm) | 200 |
| Tank Inner Diameter and Height (mm) | Φ220×180 |
| Tank Material | 304 Stainless Steel |
introduce
Application Scenarios
Laboratory Temperature Control: Ideal for precise chemical reactions, physical experiments, and material testing requiring stable low-temperature conditions to minimize experimental errors caused by temperature fluctuations.
Analytical Instrument Cooling: Provides consistent cooling for high-precision instruments like spectrometers and chromatographs, extending their lifespan and improving data accuracy and reproducibility.
Biochemical and Molecular Biology Experiments: Maintains low temperatures for enzyme reactions and cell cultures, preventing sample degradation and preserving biological activity.
Laser Cooling Systems: Ensures continuous and stable coolant circulation for laser devices, preventing overheating and enhancing output stability and longevity.
Semiconductor Manufacturing Temperature Control: Enables precise cooling during chip fabrication and photolithography processes, ensuring process stability and improving product yield.
Pharmaceutical Research Cooling Needs: Supports low-temperature synthesis and stability testing in drug development, ensuring safety and effectiveness.
Pilot and Small-Scale Industrial Processes: Offers reliable constant temperature cooling solutions for small production lines, optimizing workflow, improving product quality, and enhancing energy efficiency.
peculiarity
Stainless Steel Solvent Tank – Low Temperature Resistant, Anti-Corrosion, Anti-Rust
This durable stainless steel solvent tank is designed to withstand low temperatures, resist corrosion, and prevent rust, making it ideal for use in harsh chemical environments. Perfect for long-term solvent storage and laboratory applications.
Four-Ring Surround Cooling Vents for Optimal Compressor Protection
Featuring four-ring surround cooling vents, this design effectively protects the compressor, ensuring optimal performance and longevity during operation.
Stainless Steel Solvent Tank with Mounting Rod – For Secure Placement of Titrators and Sensors
Equipped with a mounting rod, this stainless steel solvent tank provides convenient and secure placement for titrators, sensors, and other accessories. Its design ensures stable support and easy access to your essential equipment.
Enclosed Magnetic Stir Bar for Stable Mixing
This fully enclosed magnetic stir bar ensures consistent stirring stability, providing reliable performance for precise mixing in various applications.
