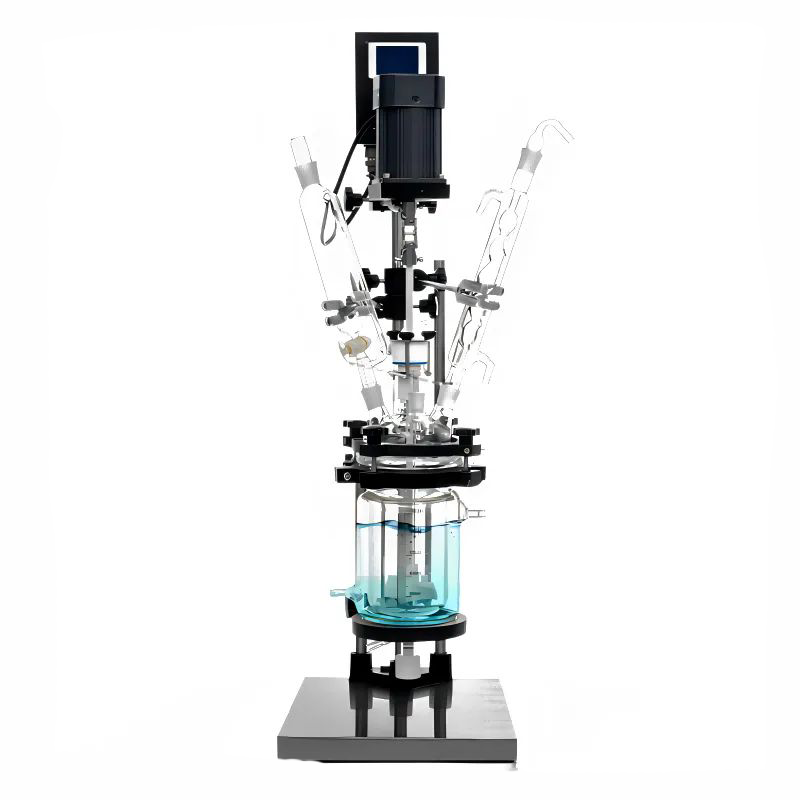

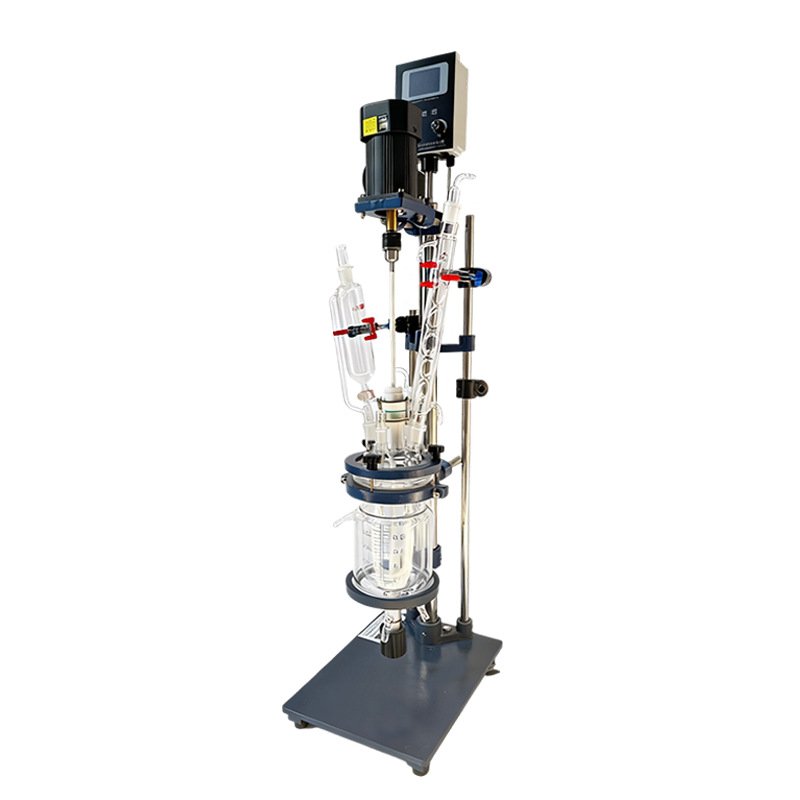

1L double glazed reactor
Double glazed reactor, also known as jacketed glass reactor, adopts high borosilicate glass and PTFE composite sealing, temperature resistance -120°C to +300°C, easily handles low-temperature crystallization to high-temperature synthesis. Equipped with adjustable speed stirring system (maximum 1350 rpm), and 5 customizable ports, supports continuous precise feeding, sampling and vacuum operation. Optional insulation jacket effectively reduces heat loss and condensation, optional spray cleaning device makes maintenance more relaxed. Specially designed for chemical and pharmaceutical small-scale trials and process development, ensures high reaction reproducibility, safe and reliable, significantly reduces later scale-up risks and costs.
We’ll take care of it the hard part for you
share
1.Double Glazed Reactor What is it?
The double glazed reactor — also called double layer jacketed glass reactor or simply jacketed glass reactor — is one of the most commonly used temperature-controlled stirred reaction vessels in chemical, pharmaceutical, and fine chemical laboratories during the small-scale (lab-scale) testing phase. This 1L model uses high-borosilicate glass as the main body with a double-layer jacket structure. By circulating heating or cooling medium through the jacket, it enables precise temperature control of the reaction system. It is suitable for a wide variety of chemical processes including low-temperature, high-temperature, vacuum, reflux, and more.
2. What problems does it solve for you?
- Unstable temperature control, large fluctuations, or thermal shock cracking of glass under extreme conditions
- Poor mixing uniformity, sedimentation at the bottom, local overheating, or incomplete reactions
- Leakage issues, contamination, or inability to maintain vacuum due to poor sealing
- Small-scale experimental data that cannot be reliably scaled up to pilot or production, leading to repeated trials, high development costs, and project delays
- Difficult cleaning and stubborn residues after reaction that affect the next experiment
- Safety risks when handling flammable or explosive solvents, plus high energy consumption and heat loss during long runs
With precise temperature control, efficient stirring, flexible multi-port design, and optional safety upgrades, it helps you obtain reliable, reproducible experimental data — greatly reducing risks and costs when moving from lab-scale to process scale-up.
3. What are the product features?
- Ultra-wide temperature range — -120°C to +300°C with real-time PT100 probe monitoring for high temperature control accuracy
- Excellent chemical resistance — Fluorine-coated stainless steel stirring paddle + high-borosilicate glass body, resistant to strong acids, strong bases, and organic solvents
- Efficient stirring system — 0–1350 rpm stepless speed control, gimbal-connected stirring shaft for smooth operation, low vibration, and low noise
- Flexible multi-port design — 5 customizable ports supporting dropping funnels, sampling, temperature probes, vacuum lines, gas inlet/outlet, reflux condensers, etc.
- Reliable sealing — PTFE composite sealing rings + precision-machined flange surfaces to effectively prevent leakage under vacuum or pressure
- Safety & energy-saving options — Optional explosion-proof motor and control box for hazardous environments; optional insulated jacket/cover to minimize heat loss and condensation
- Easy cleaning & maintenance — Optional spray cleaning device for fast rinsing after reaction, reducing residue and saving time
Demo Video & More Options
Want to see the full installation, temperature control, stirring, feeding, and cleaning process in action? Watch product operation demo video
Need a larger volume or different configuration? Browse the complete Double Glass Reactor Series — including 5L, 10L, 20L, 50L and more — to meet needs from lab-scale to pilot-scale.
We provide worldwide shipping for all laboratory equipment. Every order is carefully packaged to ensure safe delivery. If the item is in stock, it will be shipped within 3–7 business days after payment confirmation. For out-of-stock items, we will inform you of the estimated shipping time based on the specific product.
Shipping Methods: DHL, FedEx, UPS, or sea freight (depending on order size and destination)
Estimated Delivery Time:
Asia: 5–10 business days
Europe & North America: 7–12 business days
South America & Africa: 10–15 business days
Sea freight: subject to actual transit time
Tracking: A tracking number will be provided via email once the shipment has been dispatched.
Customs & Duties: Buyers are responsible for any import taxes or customs duties required by their country or region.
For bulk orders, custom packaging, or special shipping arrangements, please contact our team for personalized assistance at lab@equilrxnlab.com.
Product specifications
| Specification | AKF-1L |
|---|---|
| Material Capacity | 1 L |
| Jacket Capacity | 0.8L |
| Number of Ports | 5 (Customizable) |
| Constant Pressure Funnel | 250 mL |
| Stirring Paddle | Stainless steel coated with fluorine material |
| Coverage Diameter (mm) | 150 |
| Inner Cylinder Diameter (mm) | 100 |
| Outer Cylinder Diameter (mm) | 150 |
| Vessel Height (mm) | 320 |
| Rotational Speed (rpm) | 0–1350 |
| Stirring Shaft Diameter (mm) | 8 |
| Impeller Type | Three-blade / Four-blade |
| Voltage / Frequency | 220V / 50Hz |
| Temperature Range | -120°C to +300°C |
| Temperature Probe | PT100 sensor probe |
| Explosion-proof Control Box | Optional |
| Insulation Jacket | Optional |
| Explosion-proof Motor | Optional |
introduce
Application Scenarios
- Pharmaceutical Intermediate Synthesis & Process Optimization Used in early-stage drug development for small-scale synthesis of key intermediates requiring strict temperature control and uniform mixing. The -120°C to +300°C range and efficient stirring ensure high reproducibility and accelerate process development.
- Low-Temperature Grignard & Organometallic Reactions Many organic syntheses require temperatures as low as -78°C or below. This reactor supports ultra-low stable operation with a fluorine-coated paddle resistant to highly reactive reagents, avoiding thermal shock issues common in conventional setups.
- High-Temperature Synthesis & Solvothermal Reactions Ideal for polymerization, solvothermal reactions, and other high-temperature processes up to +300°C. The wide temperature range combined with optional insulation jacket minimizes heat loss and maintains energy efficiency.
- Distillation, Reflux & Solvent Recovery Connect condensers and receivers for atmospheric or reduced-pressure distillation and solvent recycling. Five customizable ports enable flexible setups for reflux, vacuum filtration, and more.
- Crystallization Process Control & Optimization Crystallization is highly sensitive to temperature gradients and stirring speed. Precise PT100 temperature control and 0–1350 rpm variable stirring allow fine-tuned supersaturation and crystal form control for higher purity and yield.
- Lab-to-Pilot Scale Process Validation Generates reliable, reproducible data in the lab to support confident scale-up to pilot/production. The compact 1L size is easy to handle, with parameters directly comparable to larger models in the same series.
- Other Specialized Reactions Suitable for photocatalysis (with light source port), gas-liquid reactions, multi-step continuous reactions, etc., thanks to highly customizable port configurations.
thickened glass reactor body
Inject Constant Temperature Circulating Liquid into the Central Layer Regulates the Temperature Inside the Reactor Open Design
Stirring System
Custom Variable Frequency Motor, LCD Display Stable, Can Operate Continuously Low Noise Speed Controller, Safe
Discharge valve
Discharge valve with a glass and PTFE combination Corrosion-resistant and non-contaminating No residue accumulation, flow rate adjustable
Corrosion-resistant sealing system
-0.098MPA：Uses PTFE and mechanical double-layer sealing, vacuum achievable to -0.098 MPa Non-contaminating
Multiple stirring paddles available for your selection
According to the different properties and viscosities of materials, a variety of stirring paddles are available for your selection. The standard configuration includes ABCD types of stirring rods, with the A-type paddle recommended for the bottle neck, and custom-made EF and G types of stirring rods are available as well
