1. What is it?

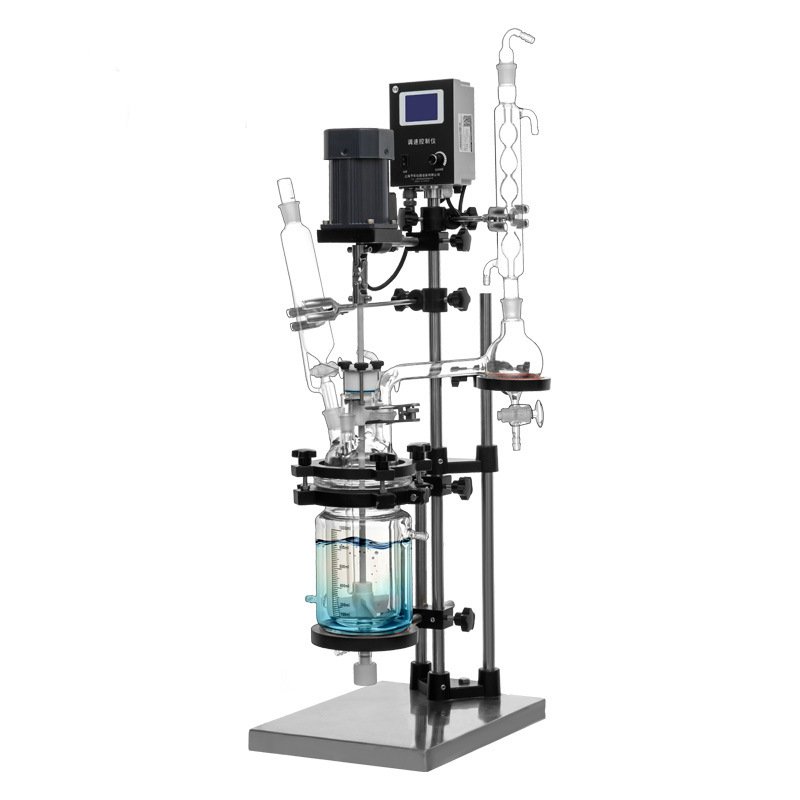

The jacketed glass reactor — also known as double layer jacketed glass reactor — is a core piece of equipment for temperature-controlled stirred reactions in chemical, pharmaceutical, and fine chemical laboratories, especially during small-to-medium scale testing. This 2L model features a high-borosilicate glass body with a double-layer jacket structure. By circulating heating or cooling medium through the jacket, it provides accurate and stable temperature control for a wide range of chemical processes, including low-temperature, high-temperature, vacuum, reflux, and more.

2. What problems does it solve for you?

Temperature instability, fluctuations, or thermal shock cracking under extreme conditions — especially critical when handling larger reaction volumes
Uneven mixing, bottom sedimentation, local overheating, or incomplete reactions — issues that become more pronounced with increased material volume and are effectively addressed by the powerful, high-torque stirring system
Leakage, contamination, or vacuum loss due to sealing failures during longer or higher-volume runs
Lab-scale data that is too small to reliably predict pilot-scale behavior, leading to costly repeated trials and scale-up failures
Insufficient sample size for meaningful process optimization or yield assessment in small-to-medium experiments
Difficult post-reaction cleaning and persistent residues when dealing with larger quantities of material
Safety risks when scaling up flammable or explosive reactions, plus higher energy consumption and heat loss in extended operations

This 2L jacketed glass reactor provides more representative reaction conditions than smaller models, delivering reliable, reproducible data that bridges lab-scale experiments to pilot-scale development — significantly reducing risks, trial-and-error costs, and time-to-market for chemical and pharmaceutical processes.

3. What are the product features?

Ultra-wide temperature range — -120°C to +300°C with real-time PT100 probe monitoring for high accuracy
Superior chemical resistance — Fluorine-coated stainless steel stirring paddle + high-borosilicate glass body, resistant to strong acids, bases, and organic solvents
Powerful & efficient stirring — 0–1350 rpm stepless speed adjustment, gimbal-connected shaft for smooth, low-vibration, low-noise performance
Highly flexible ports — 5 customizable ports supporting dropping funnels, sampling, temperature probes, vacuum lines, gas inlet/outlet, reflux, etc.
Reliable sealing system — PTFE composite seals + precision flanges to prevent leakage under vacuum or pressure
Safety & efficiency upgrades — Optional explosion-proof motor & control box for hazardous environments; optional insulated jacket/cover to reduce heat loss and condensation
Easy maintenance — Optional spray cleaning device for quick rinsing after reactions, minimizing downtime and residue issues

Demo Video & More Options

See the full installation, temperature control, stirring, feeding, and cleaning process in action: Watch product operation demo video

Looking for other volumes or configurations? Browse the complete Jacketed Glass Reactor Series — including 1L, 5L, 10L, 20L, 50L and more.

Need custom port layout, specialized stirring paddle, explosion-proof rating, or other modifications? Contact us for professional recommendations and quotations.

We provide worldwide shipping for all laboratory equipment. Every order is carefully packaged to ensure safe delivery. If the item is in stock, it will be shipped within 3–7 business days after payment confirmation. For out-of-stock items, we will inform you of the estimated shipping time based on the specific product.

Shipping Methods: DHL, FedEx, UPS, or sea freight (depending on order size and destination)
Estimated Delivery Time:

Asia: 5–10 business days
Europe & North America: 7–12 business days
South America & Africa: 10–15 business days
Sea freight: subject to actual transit time

Tracking: A tracking number will be provided via email once the shipment has been dispatched.
Customs & Duties: Buyers are responsible for any import taxes or customs duties required by their country or region.

For bulk orders, custom packaging, or special shipping arrangements, please contact our team for personalized assistance at lab@equilrxnlab.com.

Product specifications

High Pressure Reactor 2L Specifications

Parameter	AKF-2L
Material Capacity (L)	2L
Mezzanine Capacity (L)	1.2
Number of Ports	5 (Customizable)
Constant Pressure Funnel	250ML
Stirring Paddle	Stainless Steel Covered with Fluorine Material
Coverage Diameter (mm)	150
Inner Cylinder Diameter (mm)	100
Outer Cylinder Diameter (mm)	170
Vessel Height (mm)	370
Rotational Speed (rpm)	0-1350
Stirring Shaft Diameter (mm)	8
Stirring Connection	Gimbal Connection
Voltage Frequency	220V/50Hz
Temperature Range	Low -120°C to High 300°C
Temperature Probes	PT100 Sensor Probe
Explosion-proof Control Box	Optional
Insulated Clothing	Optional
Explosion-proof Motor	Optional

introduce

Application Scenarios

Pharmaceutical Intermediate Synthesis & Process Optimization Used in early- to mid-stage drug development for small-to-medium scale synthesis of key intermediates and APIs. The ultra-wide temperature range and precise PT100 control ensure high reproducibility and purity while accelerating process development and scale-up decisions.
Low-Temperature Grignard & Organometallic Reactions Essential for reactions requiring sub-zero temperatures (e.g., -78°C or lower). The reactor’s stable cryogenic performance, combined with the fluorine-coated paddle’s resistance to reactive reagents, prevents thermal shock and delivers safe, controlled results.
High-Temperature Synthesis & Solvothermal Reactions Ideal for polymerization, solvothermal synthesis, and other high-heat processes up to +300°C. Optional insulation jacket minimizes heat loss, maintaining uniform temperature and improving energy efficiency during extended runs.
Distillation, Reflux & Solvent Recovery Connect condensers, receivers, and vacuum lines for atmospheric or reduced-pressure distillation and efficient solvent recycling. The 5 customizable ports allow seamless integration of reflux, fractionation, and collection setups.
Crystallization & Precipitation Control Critical for achieving high-purity crystals with controlled crystal size and morphology. Precise temperature gradients and variable-speed stirring (0–1350 rpm) enable fine-tuned supersaturation and reproducible crystallization outcomes.
Extraction, Purification & Multi-Step Reactions Supports solvent extraction, phase separation, and sequential reactions. Flexible port configuration makes it easy to add feeding systems, sampling ports, or gas inlets for complex, multi-stage processes.
Lab-to-Pilot Scale Process Validation Generates representative data at 2L scale that bridges lab experiments to pilot/production. This reduces risks of scale-up failure, minimizes costly re-optimization, and shortens time-to-market for new chemical or pharmaceutical processes.

Multiple stirring paddles available for your selection

According to the different properties and viscosities of materials, a variety of stirring paddles are available for your selection. The standard configuration includes ABCD types of stirring rods, with the A-type paddle recommended for the bottle neck, and custom-made EF and G types of stirring rods are available as well
