Detailed Description

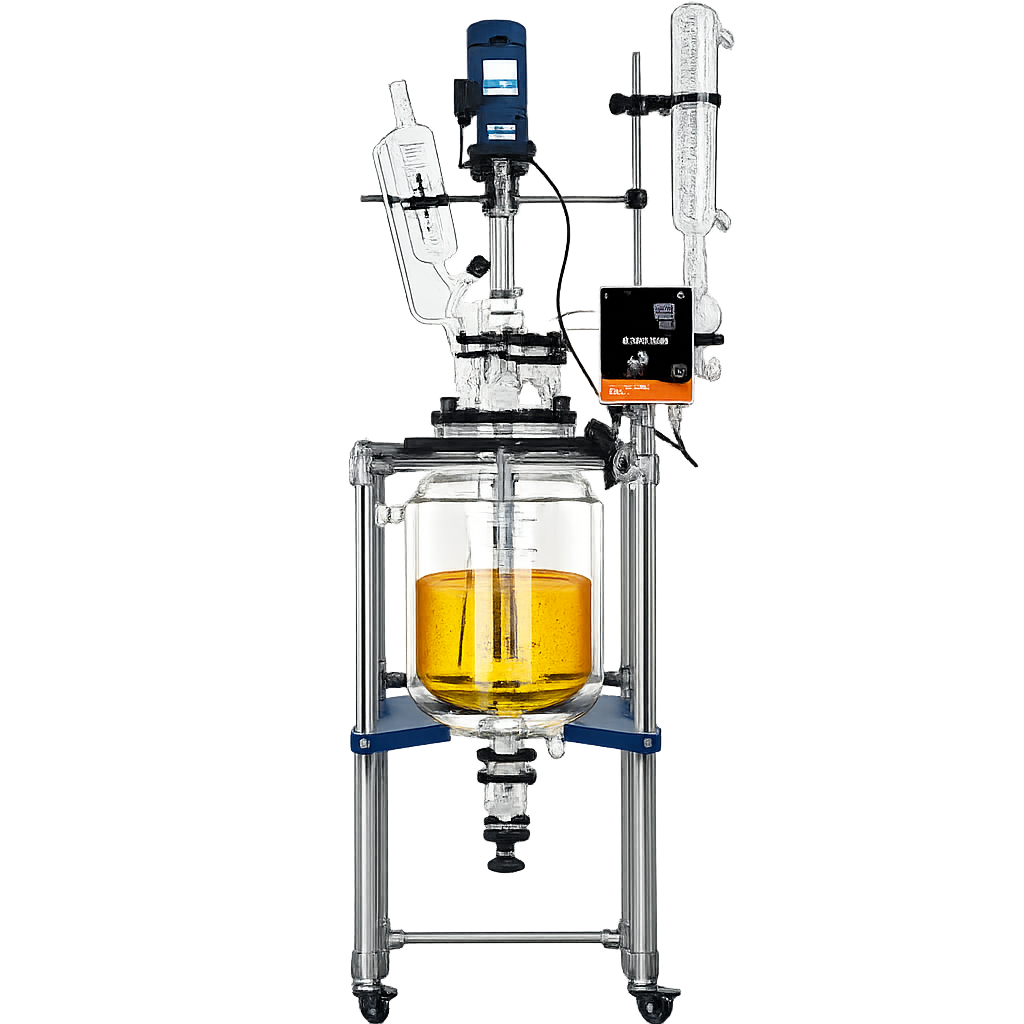

Key Features of the Glass Reactor

Large Volume Handling: 30L material capacity and 16L mezzanine volume for a wide range of reactions.
Double Jacket Design: Ensures excellent thermal regulation during endothermic and exothermic processes.
Customizable Ports: Equipped with 6 ports for flexible reactor setup and process integration.
Durable Construction: Inner components like the stirring paddle are made of stainless steel coated with fluorine material for chemical resistance.
Stable Stirring: Gimbal-connected stirring shaft supports speeds up to 450 rpm for uniform mixing.
Wide Temperature Range: Supports reactions from -120°C to 300°C with integrated PT100 temperature probe.

Technical Specifications

Material Capacity: 30L
Mezzanine Capacity: 16L
Number of Ports: 6 (Customizable)
Constant Pressure Funnel: 2L
Stirring Paddle: Stainless Steel with Fluorine Coating
Coverage Diameter: 260 mm
Inner Cylinder Diameter: 220 mm
Outer Cylinder Diameter: 370 mm
Vessel Height: 710 mm
Rotational Speed: 0–450 rpm
Stirring Shaft Diameter: 15 mm
Stirring Connection: Gimbal Type
Voltage / Frequency: 220V / 50Hz
Temperature Range: -120°C to +300°C
Temperature Probe: PT100 Sensor

Compatible Equipment

Low-Temperature Circulators: Required to supply chilled fluid into the jacket for sub-zero reactions.
Heating Circulators: Ensure precise and stable heating performance during high-temperature syntheses.
Vacuum Pumps: Enable reduced-pressure distillation or solvent recovery in the reactor system.
Glass Condensers: Useful for condensing vapor in reflux or distillation operations.
Overhead Stirring Motors: Optional for heavy-duty mixing when operating at full capacity.

Why Choose This Glass Reactor

This Glass Reactor offers exceptional performance for large-scale laboratory synthesis. Its robust build and wide thermal range make it perfect for pharmaceuticals, chemical R&D, and pilot production. The fluorine-coated components improve chemical resistance and prolong service life, while the double-walled design allows for consistent heating or cooling. Whether for simple mixing or complex reaction engineering, this Glass Reactor delivers high efficiency and reliability.

Watch Product Demonstrations

Explore real-world performance and applications in our product demo videos. Visit our video library for more insights and demonstrations.

Explore More Models

Explore more models in our Glass Reactor category to find the perfect match for your lab needs.

Shipping Information

We provide worldwide shipping for all laboratory equipment. Every order is carefully packaged to ensure safe delivery. If the item is in stock, it will be shipped within 3–7 business days after payment confirmation. For out-of-stock items, we will inform you of the estimated shipping time based on the specific product.

Shipping Methods: DHL, FedEx, UPS, or sea freight (depending on order size and destination)
Estimated Delivery Time:

Asia: 5–10 business days
Europe & North America: 7–12 business days
South America & Africa: 10–15 business days
Sea freight: subject to actual transit time

Tracking: A tracking number will be provided via email once the shipment has been dispatched.
Customs & Duties: Buyers are responsible for any import taxes or customs duties required by their country or region.

For bulk orders, custom packaging, or special shipping arrangements, please contact our team for personalized assistance at lab@equilrxnlab.com.

Product specifications

High Pressure Reactor Equipment Specifications

Model	AKF-10L	AKF-20L	AKF-30L	AKF-50L	AKF-100L	AKF-150L	AKF-200L
Material Capacity (L)	10L	20L	30L	50L	100L	150L	200L
Mezzanine Capacity (L)	6	10	16	30	60
Number of Ports	6 (Customizable)
Constant Pressure Funnel	1L		2L			5L
Stirring Paddle	Stainless Steel Covered with Fluorine Material
Coverage Diameter (mm)	260				340
Inner Cylinder Diameter (mm)	220				290		340
Outer Cylinder Diameter (mm)	270	370		410	500	600	690
Vessel Height (mm)	500	635	710	820	1070	1170	1280
Rotational Speed (rpm)	0-450	0-450	0-450	0-400	0-350	0-300	0-250
Stirring Shaft Diameter (mm)	15	15	15	17	20	22	25
Voltage Frequency	220V/50Hz
Temperature Range	Low -120°C to High 300°C

introduce

Application Scenarios

Chemical Synthesis in Research Laboratories
The Glass Reactor 30L is ideal for chemical synthesis requiring precise temperature and stirring control. Its double jacket structure supports accurate thermal regulation, essential for reaction reproducibility.
Pharmaceutical Formulation Development
In pharmaceutical R&D, the Glass Reactor 30L is used for formulating compounds under strict thermal conditions. Its spacious 30L vessel and customizable ports allow integration with dosing and sampling systems.
Pilot Scale Organic Reactions
This Glass Reactor is commonly employed in pilot-scale organic reactions, including reflux, crystallization, and polymerization. The reactor’s ability to maintain -120°C to 300°C makes it versatile across a broad range of chemical protocols.
Material Science and Nanomaterials Preparation
For laboratories working on advanced materials or nanotechnology, the 30L Glass Reactor enables controlled dispersion, synthesis of nano-particles, and surface modification processes with stable temperature and agitation.
Food and Flavor Extraction R&D
The Glass Reactor is also suitable for extracting active compounds and flavors in food technology R&D, offering a contamination-free and easily cleaned glass reaction environment.
Environmental and Wastewater Treatment Testing
Environmental labs use the Glass Reactor 30L for simulating chemical reactions in wastewater treatment processes, ensuring precise control over experimental variables and reaction pathways.
Petrochemical Intermediate Testing
In petrochemical analysis, this Glass Reactor serves in testing reactivity of intermediate chemicals, corrosion resistance studies, and synthesis under elevated temperatures.

peculiarity

Multiple stirring paddles available for your selection

According to the different properties and viscosities of materials, a variety of stirring paddles are available for your selection. The standard configuration includes ABCD types of stirring rods, with the A-type paddle recommended for the bottle neck, and custom-made EF and G types of stirring rods are available as well
