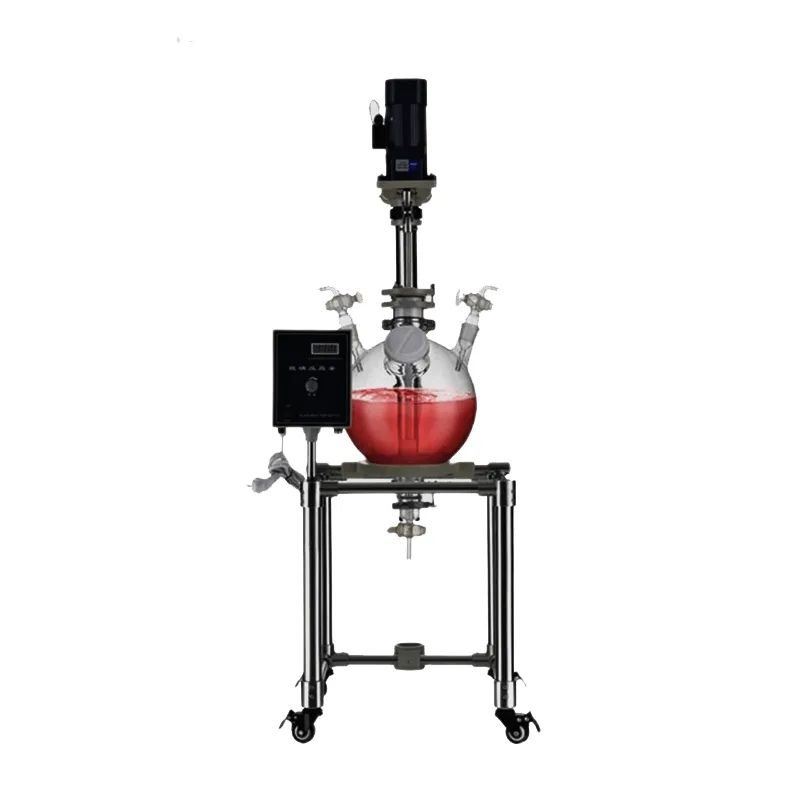

AKFY-10L Spherical Glass Separator | 10L Liquid-Liquid Extractor with PTFE Valve & Vacuum Control

Compact Lab-Grade Glass Liquid Separator Featuring Spherical 10L Vessel, Corrosion-Resistant PTFE Components, and -0.098MPa Vacuum for Efficient Phase Separation

The spherical glass liquid-liquid separator is designed for efficient and reliable separation of immiscible liquids in laboratory and industrial applications. With a 10L glass volume and a loading capacity of up to 80%, it offers excellent performance in phase separation processes. The separator is powered by a 120W motor and operates at rotation speeds up to 450 rpm, ensuring thorough mixing and separation. Its compact size and durable materials make it ideal for precise liquid-liquid extraction under controlled vacuum conditions.

Detailed Description

Key Features of the Spherical Glass Liquid-Liquid Separator

  • 10L spherical glass volume suitable for small to medium batch processing

  • Loading capacity up to 80% for optimal separation efficiency

  • Powerful 120W motor with adjustable rotation speed from 0 to 450 rpm

  • Stirring rod diameter of 10mm, made from stainless steel coated with PTFE for chemical resistance

  • High vacuum degree of 0.098 Mpa to support efficient phase separation

  • Frame constructed from 304 stainless steel with optional Teflon coating for enhanced corrosion resistance

  • Equipped with a PTFE valve core discharge valve that ensures corrosion resistance and dead angle-free stirring, leaving no liquid residue

  • Voltage rated at 220V/50Hz for stable and consistent operation

Technical Specifications

  • Glass Volume: 10L

  • Loading Capacity: ≤80%

  • Motor Power: 120W

  • Rotation Speed: 0–450 rpm

  • Stirring Rod Diameter: 10mm

  • Stirring Rod Material: Stainless Steel Coated with PTFE (other options available)

  • Vacuum Degree: 0.098 Mpa

  • Frame Material: 304 Stainless Steel (optional Teflon coating)

  • Discharge Valve: PTFE Valve Core, corrosion-resistant, dead angle-free stirring, no liquid residue

  • Voltage: 220V/50Hz

Compatible Equipment and Applications

  • Rotary evaporators: For efficient solvent recovery and distillation processes

  • Vacuum filtration systems: To assist in separation and purification tasks

  • Freeze dryers: For sample drying after liquid-liquid separation

  • Reflux apparatus: Enhances reaction efficiency by separating phases continuously

  • Extraction units: Improves liquid-liquid extraction throughput with reliable stirring and vacuum conditions

Each compatible device supports the separator’s role in delivering precise, contamination-free liquid phase separations while maintaining stable vacuum and stirring control.

Why Choose Our Spherical Glass Liquid-Liquid Separator?

This separator excels with its corrosion-resistant PTFE components and dead angle-free stirring design, which guarantees no liquid residue and easy cleaning. The combination of a robust 120W motor and vacuum capability of 0.098 Mpa ensures high separation efficiency and reliability for repeated laboratory or industrial use. Its spherical glass design optimizes mixing and phase separation, making it a trusted choice for various chemical and pharmaceutical processes.

Watch Product Demonstrations

Explore real-world performance and applications in our product demo videos. Visit our video library for more insights and demonstrations.

Discover more about advanced liquid-liquid separators by visiting our glass liquid-liquid separator category.

We provide worldwide shipping for all laboratory equipment. Every order is carefully packaged to ensure safe delivery. If the item is in stock, it will be shipped within 3–7 business days after payment confirmation. For out-of-stock items, we will inform you of the estimated shipping time based on the specific product.

Shipping Methods: DHL, FedEx, UPS, or sea freight (depending on order size and destination)
Estimated Delivery Time:

  • Asia: 5–10 business days

  • Europe & North America: 7–12 business days

  • South America & Africa: 10–15 business days

  • Sea freight: subject to actual transit time

Tracking: A tracking number will be provided via email once the shipment has been dispatched.
Customs & Duties: Buyers are responsible for any import taxes or customs duties required by their country or region.

For bulk orderscustom packaging, or special shipping arrangements, please contact our team for personalized assistance at lab@equilrxnlab.com.

Product specifications

High Pressure Reactor Equipment Specifications
ModelAKFY-10LAKFY-20LAKFY-30LAKFY-50LAKFY-100L
Glass Volume (L)10L20L30L50L100L
Loading Capacity≦80%
Motor Power120W
Rotation Speed0-450rpm
Stirring Rod Diameter10mm12mm17mm
Stirring Rod MaterialStainless Steel Coated with PTFE (Various options available)
Vacuum Degree0.098Mpa
Frame Material304 Stainless Steel (Optional Spray Teflon)
Discharge ValvePTFE Valve Core, Corrosion-resistant, No Dead Angle Stirring, No Liquid Residue
Voltage220V/50Hz

introduce

Application Scenarios

  • Widely used in chemical laboratories for efficient and precise separation of immiscible liquids, improving extraction and purification processes.

  • Ideal for pharmaceutical and biotech laboratories handling sensitive solvents and compounds requiring gentle, contamination-free separation.

  • Suitable for research and development centers focusing on liquid-liquid extraction, phase separation, and solvent recovery under controlled vacuum conditions.

  • Perfect for pilot-scale production where accurate and reliable separation of different liquid phases is critical for product quality.

  • Great for educational institutions, as the transparent spherical glass design allows clear visual observation of separation processes, enhancing learning experiences.

  • Applicable in industrial processes that require corrosion-resistant materials and precise vacuum control to maintain product integrity and process efficiency.

Glass Liquid Separator Glass Separator Extractor For Liquid Glass Liquid-Liquid Separator Glass Water-Oil Separator Spherical Glass Liquid-Liquid Separator

peculiarity

Glass Liquid Separator

High-Performance PTFE Stirring Rod

Corrosion-resistant and durable against acids and bases, ideal for laboratory use.

Swivel Caster Wheels with Locking Function

Swivel caster wheels enable smooth movement and feature a reliable locking mechanism for secure positioning. Durable and versatile, they are perfect for various applications, combining convenience with stability.

Bottom Discharge Valve

No Dead Angle Discharge, Corrosion-Resistant, Pollution-Free, and Long-Lasting.

Thickened High Borosilicate Glass

Durable and Sturdy, Easy to Clean, Shatter-Resistant, with Excellent Transparency for Easy Observation.

Scope of Application

Biopharmaceuticals

Scientific Research Experiments

Food Processing

industrial factory

Why choose us?

Factory direct sales

“Factory direct sales ensure affordability, reliability, and direct access to high-quality products.”

Reliable quality

“Reliable quality ensures trust, satisfaction, durability, and consistent performance.”

Worry free after sale

“Worry-free after-sale service ensures peace of mind and satisfaction.”

Customized service

“Customized services provide personalized solutions and tailored experiences.”

Actual Product Results at Client Locations

Explore real-world examples of our product in action at client locations, showcasing its effectiveness and performance across various applications.
