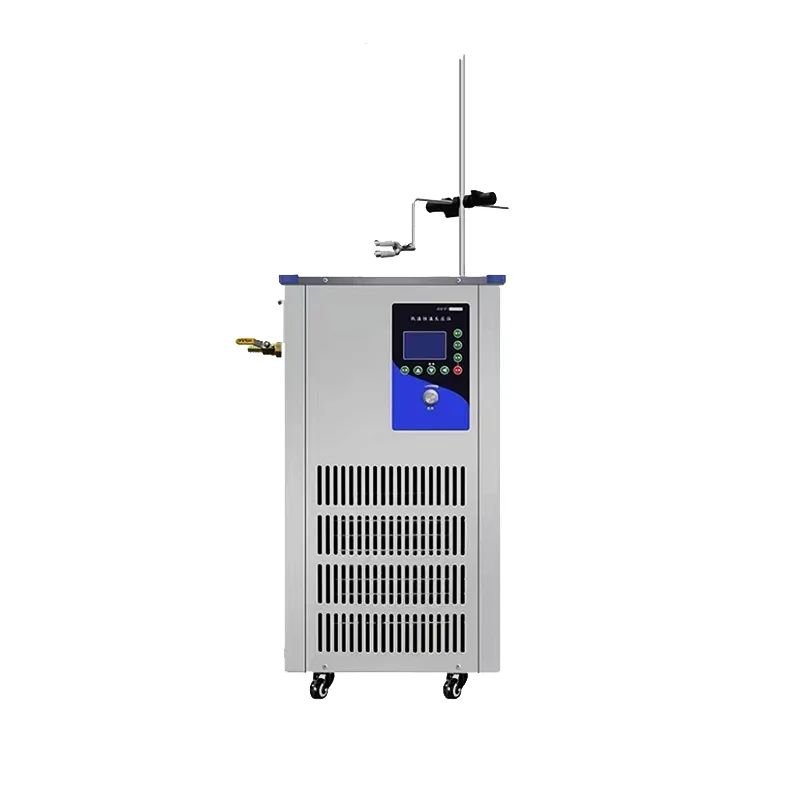

AKFY-5L Low-Temperature Constant Temperature Reaction Bath
Low-Temperature Constant Temperature Reaction Bath for Precise Thermal Control
The Low-Temperature Constant Temperature Reaction Bath offers stable temperature control from -120℃ to +99℃ with high accuracy ±0.5℃. Designed with a 5L storage capacity and magnetic stirring at the tank bottom, it ensures uniform temperature distribution and consistent mixing. Its compact size and reliable safety protections make it ideal for laboratories requiring precise thermal environments.
We’ll take care of it the hard part for you
share
Detailed Description
Key Features of Low-Temperature Constant Temperature Reaction Bath
Wide temperature range from -120℃ to +99℃ covering various experimental needs
Magnetic stirring system at the tank bottom for thorough mixing and reaction uniformity
Accurate temperature control with ±0.5℃ precision enabled by an advanced digital LCD display and button operation
Robust construction with cold-rolled steel body and anti-corrosion plastic coating for durability
Multiple safety protections including delay start, overload, and overheat safeguards
Optional explosion-proof compressor and controller for hazardous environments
Efficient cooling coil made of nickel-plated copper and flexible condenser options (air-cooled or water-cooled)
Technical Specifications of AKFY-5 Series
Model AKFY-5/20: Temperature Range -20～+99℃, Compressor Power 500W
Model AKFY-5/30: Temperature Range -30～+99℃, Compressor Power 735W
Model AKFY-5/40: Temperature Range -40～+99℃, Compressor Power 735W
Model AKFY-5/60: Temperature Range -60～+99℃, Compressor Power 1470W
Model AKFY-5/80: Temperature Range -80～+99℃, Compressor Power 1470W
Model AKFY-5/120: Temperature Range -120～+99℃, Compressor Power 2205W
Storage Capacity: 5L
Recommended Ambient Temperature: 5～35℃
Ambient Humidity: ≥60–80%, ventilated
Temperature Control Accuracy: ±0.5℃
Practical Open Diameter: 230mm
Discharge Volume: 2L
Stirring: Magnetic stirring at bottom of tank
Safety Protection: Delay, overload, overheat
Display: LCD digital, button operation
Cooling Coil: Nickel-plated copper tube
Body Material: Cold-rolled steel with anti-corrosion plastic coating
Heating Power: 1500W
Circulating Pump Power: 100W
Condenser: Air-cooled (optional water-cooled)
Power Supply: 220V / 50Hz
Explosion-Proof Compressor: Optional
Explosion-Proof Controller: Optional
Compatible Equipment for Optimal Performance
Magnetic Stirrer Controller: Enhances stirring speed control for precise mixing
Temperature Sensors: Improves temperature monitoring accuracy and stability
Water-cooled Condenser System: Provides enhanced cooling efficiency in high-temperature environments
Safety Alarms and Monitoring Systems: Ensures timely alerts for overload or temperature deviations
Compatible Reaction Vessels: Sized for 5L capacity to maximize thermal contact and reaction efficiency
These compatible devices improve reliability, safety, and efficiency in various experimental conditions.
Highlighting the Advantages of Low-Temperature Constant Temperature Reaction Bath
The Low-Temperature Constant Temperature Reaction Bath combines precise temperature control with reliable magnetic stirring to ensure uniform reaction conditions. Its robust design, safety features, and versatile temperature range make it indispensable for demanding laboratory applications. Optional explosion-proof components offer additional safety for hazardous environments, making this bath a top choice for chemical, pharmaceutical, and material science research.
Watch Product Demonstrations
Explore real-world performance and applications in our product demo videos. Visit our video library for more insights and demonstrations.
Explore More
For more models and options, please visit our Low-Temperature Constant Temperature Reaction Bath category page.
Shipping Information
We provide worldwide shipping for all laboratory equipment. Every order is carefully packaged to ensure safe delivery. If the item is in stock, it will be shipped within 3–7 business days after payment confirmation. For out-of-stock items, we will inform you of the estimated shipping time based on the specific product.
Shipping Methods: DHL, FedEx, UPS, or sea freight (depending on order size and destination)
Estimated Delivery Time:
Asia: 5–10 business days
Europe & North America: 7–12 business days
South America & Africa: 10–15 business days
Sea freight: subject to actual transit time
Tracking: A tracking number will be provided via email once the shipment has been dispatched.
Customs & Duties: Buyers are responsible for any import taxes or customs duties required by their country or region.
For bulk orders, custom packaging, or special shipping arrangements, please contact our team for personalized assistance at lab@equilrxnlab.com.
Product specifications
| Parameter | AKFY-5/20 | AKFY-5/30 | AKFY-5/40 | AKFY-5/60 | AKFY-5/80 | AKFY-5/120 |
|---|---|---|---|---|---|---|
| Temperature Range (℃) | -20～+99 | -30～+99 | -40～+99 | -60～+99 | -80～+99 | -120～+99 |
| Storage Capacity (L) | 5 | |||||
| Best Ambient Temperature (℃) | 5～35 | |||||
| Ambient Humidity | ≥60-80% ventilation | |||||
| Temperature Control Accuracy (℃) | ±0.5 | |||||
| Practical Open Diameter (mm) | 230 | |||||
| Discharge Volume (L) | 2 | |||||
| Stirring | Magnetic stirring at the bottom of the liquid storage tank | |||||
| Safety Protection | Delay/Overload/Overheat | |||||
| Display Method | LCD digital display, button operation | |||||
| Cooling Coil | Nickel-plated copper tube | |||||
| Body Material | Cold-rolled sheet sprayed with anti-corrosion plastic | |||||
| Heating Power (W) | 1500 | |||||
| Compressor Power (W) | 500 | 735 | 735 | 1470 | 1470 | 2205 |
| Circulating Pump Power (W) | 100 | |||||
| Condenser | Air-cooled condenser (optional water-cooled) | |||||
| Power Supply | 220V/50Hz | |||||
| Explosion-proof Compressor | Optional | |||||
| Explosion-proof Controller | Optional | |||||
introduce
Application Scenarios
Pharmaceutical Research: Ideal for precise temperature control in drug formulation, stability testing, and reaction kinetics studies requiring temperatures from -120℃ to 99℃.
Chemical Synthesis: Supports low-temperature reactions with accurate thermal management and magnetic stirring, essential for sensitive chemical compounds and catalysts.
Biotechnology: Provides stable environments for enzyme reactions, protein crystallization, and cell culture processes that demand consistent low-temperature conditions.
Material Science: Suitable for polymerization, crystallization, and material aging tests requiring controlled low temperatures and stirring to ensure uniform results.
Food Industry: Used for food preservation experiments and quality control processes where precise temperature regulation and stirring improve sample consistency.
Environmental Testing: Enables simulation of cold environments and temperature cycling for testing product durability and environmental resistance.
Academic Laboratories: Widely used for teaching and research purposes in universities for experiments involving low-temperature chemical and biological reactions.
peculiarity
Variable Frequency Compressor
Uses a leading brand fully enclosed compressor, occupying minimal space, with high heat exchange efficiency, providing effective cooling with safety and stability.
Solution 1
Combines a rotary evaporator with a circulating water vacuum pump to form a complete and integrated system.
Louvered Cooling Window
Features a louvered design for efficient heat dissipation, allowing for rapid cooling and ensuring stable machine operation.
Solution 2
Combines a double-layer glass reactor with its own circulation system to transfer the cooling medium to the reactor for circulation. This setup enables the glass reactor to conduct low-temperature reaction experiments on materials.
