Detailed Description
Main Features

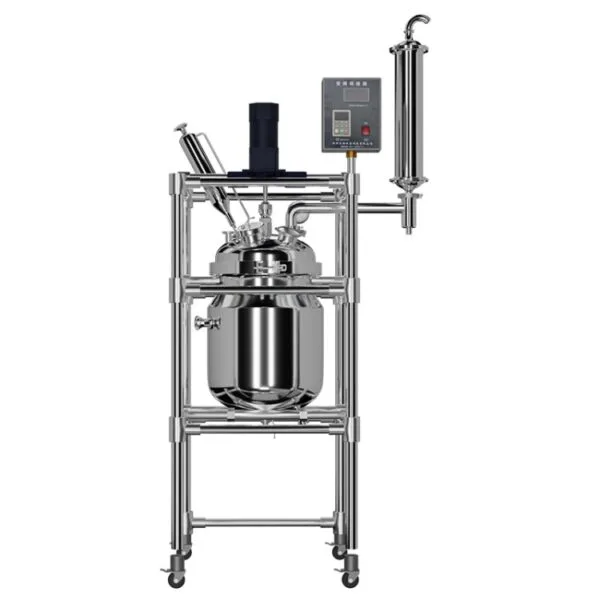

This 316 Stainless Steel Double-Layer Reactor boasts 4mm thick inner and outer walls, maximizing heat retention and pressure resistance. The motor provides 250W power to the agitator, allowing rotation speeds from 0 to 450 RPM, all controlled digitally. The agitator shaft, coated with fluorine and made from stainless steel, resists corrosion and offers multiple shaft options suitable for the 316 Stainless Steel Double-Layer Reactor. A DN32 ball valve enables smooth material discharge, making this 316 Stainless Steel Double-Layer Reactor a versatile choice for various chemical reactions.
Technical Specifications
Reaction Volume: 20L
Material: 316 Stainless Steel
Inner Wall Thickness: 4mm
Outer Wall Thickness: 4mm (Pressure-adjustable)
Motor Power: 250W
Rotation Speed: 0–450 RPM
Controller: Speed Adjustment, Digital Temperature Display
Kettle Diameter: Customized
Working Pressure: 1 ~ 0.59 MPa
Agitator Shaft: Stainless Steel with Fluorine Coating (Multiple Types for 316 Stainless Steel Double-Layer Reactor)
Discharge Valve: DN32 Ball Valve
Power Supply: 220V / 50Hz
Compatible Equipment
Low-Temperature Cooling Circulating Pump: Provides precise jacket temperature control for the 316 Stainless Steel Double-Layer Reactor during sensitive reactions.
High and Low Temperature Integrated Circulator: Supports heating and cooling needs of the 316 Stainless Steel Double-Layer Reactor for flexible process management.
Vacuum Pump: Enhances reaction efficiency under vacuum conditions with the 316 Stainless Steel Double-Layer Reactor.
Overhead Stirrer: Offers additional stirring capacity for high-viscosity reactions in the 316 Stainless Steel Double-Layer Reactor.
Explosion-Proof Controller Cabinet: Ensures safe operation of the 316 Stainless Steel Double-Layer Reactor in hazardous environments.
Why Choose This 316 Stainless Steel Double-Layer Reactor
Choosing the 316 Stainless Steel Double-Layer Reactor guarantees a corrosion-resistant, durable, and highly controllable chemical reaction platform. The 316 Stainless Steel Double-Layer Reactor’s robust design, precise digital controls, and flexible pressure handling make it ideal for lab and pilot-scale chemical processes, providing safety and reliability across various applications.
Watch Product Demonstrations
Explore real-world performance and applications in our product demo videos. Visit our video library for more insights and demonstrations.
Explore More Stainless Steel Reactors
Discover more options and models in our stainless steel reactor category.
Shipping Information
We provide worldwide shipping for all laboratory equipment. Every order is carefully packaged to ensure safe delivery. If the item is in stock, it will be shipped within 3–7 business days after payment confirmation. For out-of-stock items, we will inform you of the estimated shipping time based on the specific product.
Shipping Methods: DHL, FedEx, UPS, or sea freight (depending on order size and destination)
Estimated Delivery Time:
Asia: 5–10 business days
Europe & North America: 7–12 business days
South America & Africa: 10–15 business days
Sea freight: subject to actual transit time
Tracking: A tracking number will be provided via email once the shipment has been dispatched.
Customs & Duties: Buyers are responsible for any import taxes or customs duties required by their country or region.
For bulk orders, custom packaging, or special shipping arrangements, please contact our team for personalized assistance at lab@equilrxnlab.com.
Product specifications
| Model | AKGF-5L | AKGF-10L | AKGF-20L | AKGF-30L | AKGF-50L | AKGF-100L | AKGF-200L |
|---|---|---|---|---|---|---|---|
| Reaction Volume (L) | 5 | 10 | 20 | 30 | 50 | 100 | 200 |
| Material | 304 (316) Stainless Steel (Optional) | ||||||
| Thickness | Inner wall 4mm, outer wall 4mm (Adjustable based on pressure) | ||||||
| Motor Power (W) | 120 | 200 | 250 | 250 | 400 | 400 | 750 |
| Rotation Speed | 0-450 RPM | ||||||
| Controller | Speed adjustment, digital temperature display | ||||||
| Kettle Diameter (mm) | Customized based on requirements | ||||||
| Working Pressure | (1~0.59Mpa) | ||||||
| Agitator Shaft | Stainless Steel coated with fluorine materials (Various types available) | ||||||
| Discharge Valve | DN32 Ball Valve | ||||||
| Power Supply | 220V/50Hz | ||||||
introduce
Application Scenarios
Chemical Industry: Ideal for organic synthesis, polymerization, and crystallization requiring precise temperature and pressure control.
Pharmaceutical Industry: Suitable for small-scale drug formulation, mixing, and reaction under controlled conditions.
Biochemical Research: Supports biochemical reactions with stable stirring and temperature regulation.
Food Processing: Used for mixing, heating, and emulsifying sensitive food ingredients safely.
Cosmetic Industry: Perfect for blending creams, lotions, and other personal care products with temperature control.
Pilot-Scale Production: Enables small batch manufacturing with reliable pressure and speed adjustments.
Temperature-Sensitive Reactions: Double-layer jacket design allows efficient heating or cooling for delicate processes.
Handling Corrosive Materials: 316 stainless steel construction ensures corrosion resistance and long service life.
peculiarity
“Stainless Steel Reactor Body” “High-Quality Stainless Steel Reactor Body” “Corrosion-Resistant and High-Temperature Resistant”
Stainless Steel Reactor LidGood Sealing PerformanceThe material is neither volatile nor flammable/explosive
Bottom Discharge Outlet” “Stainless Steel Discharge Outlet, corrosion-resistant and wear-resistant” “No dead angles inside the reactor, no residual liquid during discharge
“Visual Window” “High-Pressure Sealed Visual Window” “Provides a clear view of the reaction inside the reactor”
