Detailed Description

Main Features

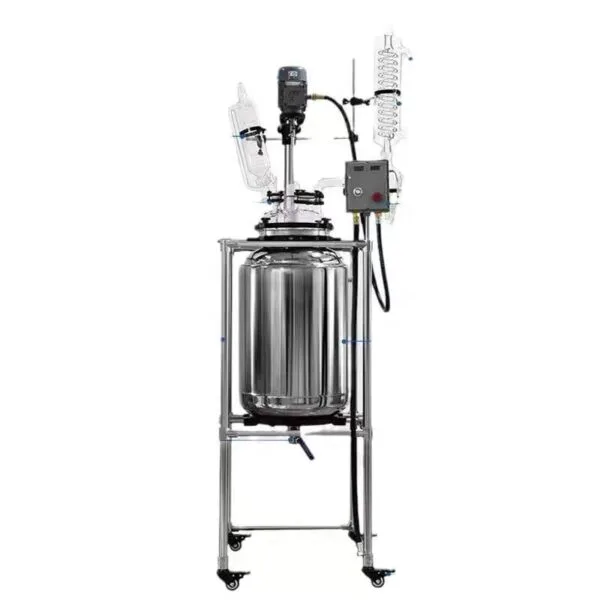

The 30L Explosion-Proof Double-Layer Stainless Steel Reactor combines safety, durability, and performance. The double-layer structure provides efficient thermal control, while the explosion-proof design ensures safe operation in volatile environments. The 250W motor supports smooth stirring from 0 to 450 RPM, and the digital temperature display allows precise monitoring. Its stainless steel construction with optional 304 or 316 material ensures chemical resistance and long-term reliability.

Technical Specifications

Reaction Volume: 30L
Material: 304 (316) Stainless Steel (Optional)
Inner Wall Thickness: 4mm
Outer Wall Thickness: 4mm (Adjustable based on pressure)
Motor Power: 250W
Rotation Speed: 0–450 RPM
Controller: Speed Adjustment, Digital Temperature Display
Kettle Diameter: Customized
Working Pressure: 1 ~ 0.59 MPa
Agitator Shaft: Stainless Steel with Fluorine Coating (Various Types Available)
Discharge Valve: DN32 Ball Valve
Power Supply: 220V / 50Hz

Compatible Equipment

Low-Temperature Cooling Circulating Pump: Maintains precise temperature control for double-layer reactor jackets during endothermic reactions.
High and Low Temperature Integrated Circulator: Enables rapid thermal cycling for dynamic reaction conditions.
Vacuum Pump: Assists with vacuum reaction processes, improving safety and reaction efficiency.
Explosion-Proof Controller Cabinet: Enhances control precision and safety in hazardous reaction environments.
Overhead Stirrer (Explosion-Proof Type): Offers additional mixing capability for high-viscosity materials.

Why Choose This Explosion-Proof Double-Layer Stainless Steel Reactor

This Explosion-Proof Double-Layer Stainless Steel Reactor offers high reliability and adaptability for complex chemical synthesis. Its explosion-proof structure supports safe handling of volatile solvents, while the double-layer design enhances temperature regulation. With customizable parameters, digital control, and corrosion-resistant materials, this reactor is a dependable choice for laboratories prioritizing safety and performance.

Watch Product Demonstrations

Explore real-world performance and applications in our product demo videos. Visit our video library for more insights and demonstrations.

Explore More Stainless Steel Reactors

Discover more models in our stainless steel reactor category.

Shipping Information

We provide worldwide shipping for all laboratory equipment. Every order is carefully packaged to ensure safe delivery. If the item is in stock, it will be shipped within 3–7 business days after payment confirmation. For out-of-stock items, we will inform you of the estimated shipping time based on the specific product.

Shipping Methods: DHL, FedEx, UPS, or sea freight (depending on order size and destination)
Estimated Delivery Time:

Asia: 5–10 business days
Europe & North America: 7–12 business days
South America & Africa: 10–15 business days
Sea freight: subject to actual transit time

Tracking: A tracking number will be provided via email once the shipment has been dispatched.
Customs & Duties: Buyers are responsible for any import taxes or customs duties required by their country or region.

For bulk orders, custom packaging, or special shipping arrangements, please contact our team for personalized assistance at lab@equilrxnlab.com.

Product specifications

High Pressure Reactor Equipment Specifications

Model	AKGF-5L	AKGF-10L	AKGF-20L	AKGF-30L	AKGF-50L	AKGF-100L	AKGF-200L
Reaction Volume (L)	5	10	20	30	50	100	200
Material	304 (316) Stainless Steel (Optional)
Thickness	Inner wall 4mm, outer wall 4mm (Adjustable based on pressure)
Motor Power (W)	120	200	250	250	400	400	750
Rotation Speed	0-450 RPM
Controller	Speed adjustment, digital temperature display
Kettle Diameter (mm)	Customized based on requirements
Working Pressure	(1~0.59Mpa)
Agitator Shaft	Stainless Steel coated with fluorine materials (Various types available)
Discharge Valve	DN32 Ball Valve
Power Supply	220V/50Hz

introduce

Application Scenarios

Chemical synthesis in pharmaceutical laboratories
Used for intermediate or final product synthesis under controlled temperature and pressure conditions, particularly when handling flammable solvents or reactive gases. Its explosion-proof structure ensures safe and stable operation.
Petrochemical research and development
Suitable for simulating refinery processes, polymerization, and hydrocarbon cracking reactions. The reactor’s robust construction allows it to handle the harsh conditions typical in petrochemical environments.
Pilot scale-up studies in fine chemical production
The 30L capacity makes it ideal for small-scale production trials. It provides reliable temperature and agitation control during the development of dyes, additives, and specialty chemicals.
Materials science and nanomaterial synthesis
Supports high-temperature and high-pressure conditions necessary for producing advanced materials, such as nanomaterials or composites, while maintaining high chemical compatibility.
Biochemical and enzyme reaction systems
Ideal for biological or enzymatic reactions that require precise thermal regulation. The double-layer jacket is compatible with external circulators to maintain ideal temperature environments for sensitive biomaterials.
Environmental technology research
Applied in experimental setups for wastewater treatment, catalytic degradation, or gas-phase pollutant processing, especially when reactions involve corrosive media or elevated pressures.
Academic and institutional laboratory research
A preferred tool for universities and scientific institutions carrying out a wide range of chemical and process engineering experiments, especially those involving hazardous substances.
