Detailed Description

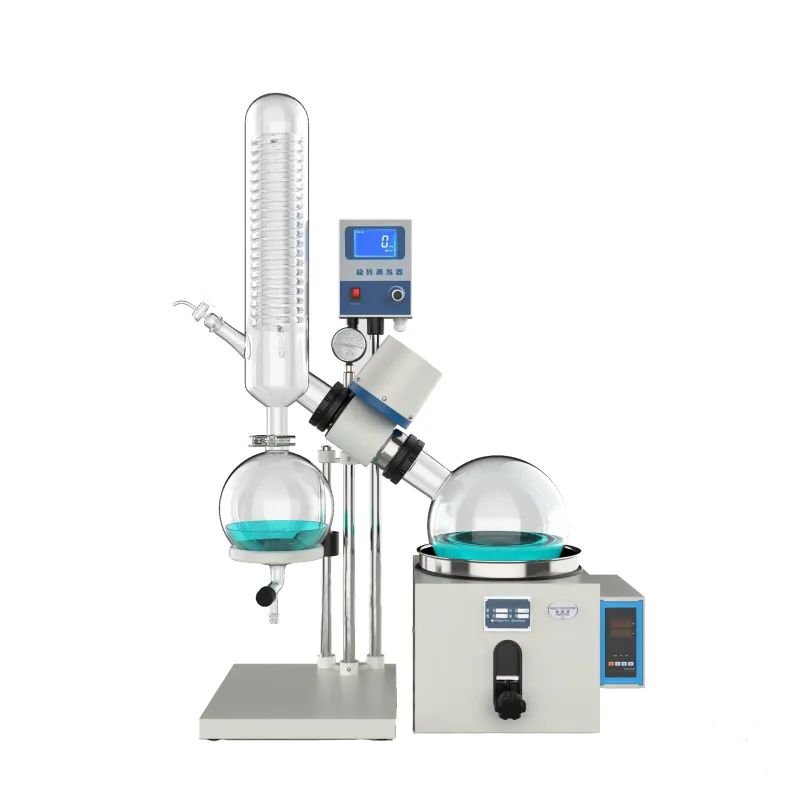

Key Features of the Laboratory Rotary Evaporator

3L Rotary Flask and 2L Collection Flask for mid-scale laboratory evaporation tasks
Wide Rotating Speed Range of 0–120 rpm for fine control of evaporation rate
Large 0.26㎡ Condenser Area for efficient cooling and solvent recovery
Customizable Heating Temperature from 0 to 99°C with ±1°C accuracy
High Heating Power of 2 kW ensures rapid solvent evaporation
Optional Safety Add-ons, including explosion-proof motor, controller, and protective shield

Technical Specifications

Rotary Flask Capacity: 3 L
Collection Flask Capacity: 2 L
Rotating Speed: 0–120 rpm
Condenser Area: 0.26 ㎡
Rotary Motor Power: 40 W
Heating Power: 2 kW
Vacuum Degree: —
Temperature Range: 0–99°C (customizable)
Temperature Accuracy: ±1°C
Power Supply: 220V / 50Hz (customizable)
Explosion-proof Motor: Optional
Explosion-proof Controller: Optional
Protective Shield: Optional

Compatible Equipment for Laboratory Rotary Evaporator

Vacuum Pump: Ensures efficient solvent evaporation under reduced pressure; essential when working with temperature-sensitive substances.
Low-Temperature Cooling Circulator: Improves condenser performance, especially with the large 0.26㎡ condenser area.
Vacuum Controller: Allows precise regulation of vacuum level for better reproducibility.
Drying Oven or Freeze Dryer: Complements post-evaporation sample processing in analytical or preparative workflows.
Chiller System: Maintains stable cooling temperatures during high-throughput evaporation sessions.

Why Choose This Laboratory Rotary Evaporator

This Laboratory Rotary Evaporator combines capacity, precision, and safety for reliable solvent evaporation. Its 3L flask size supports larger sample volumes without compromising accuracy, while the powerful 2 kW heating element ensures fast and controlled heating. The condenser surface of 0.26㎡ allows rapid solvent recovery, reducing process time. With optional explosion-proof features and compact lab-friendly design, this unit is ideal for demanding laboratory workflows requiring accuracy, efficiency, and safety.

Watch Product Demonstrations

Explore real-world performance and applications in our product demo videos. Visit our video library for more insights and demonstrations.

Explore More Laboratory Rotary Evaporator Solutions

Find additional models and configurations in our Laboratory Rotary Evaporator category to meet your specific lab evaporation needs.

Shipping Information

We provide worldwide shipping for all laboratory equipment. Every order is carefully packaged to ensure safe delivery. If the item is in stock, it will be shipped within 3–7 business days after payment confirmation. For out-of-stock items, we will inform you of the estimated shipping time based on the specific product.

Shipping Methods: DHL, FedEx, UPS, or sea freight (depending on order size and destination)
Estimated Delivery Time:

Asia: 5–10 business days
Europe & North America: 7–12 business days
South America & Africa: 10–15 business days
Sea freight: subject to actual transit time

Tracking: A tracking number will be provided via email once the shipment has been dispatched.
Customs & Duties: Buyers are responsible for any import taxes or customs duties required by their country or region.

For bulk orders, custom packaging, or special shipping arrangements, please contact our team for personalized assistance at lab@equilrxnlab.com.

Product specifications

High Pressure Reactor Equipment Specifications

Parameter	AKRE-201	AKRE-301	AKRE-501
Rotary Flask Capacity (L)	1	3	5
Collection Flask Capacity (L)	1	2	3
Rotating Speed (rpm)	0-120	0-120	0-120
Condenser Area (㎡)	0.17	0.26	0.26
Rotary Motor Power (W)	40	40	40
Heating Power (KW)	1	2	2
Vacuum Degree (Mpa)	0.098	—	—
Temperature Range	0-99°C (customizable)	0-99°C (customizable)	0-99°C (customizable)
Temperature Accuracy	±1°C	±1°C	±1°C
Power Supply	220V/50Hz (customizable)	220V/50Hz (customizable)	220V/50Hz (customizable)
Explosion-proof Motor	Optional	Optional	Optional
Explosion-proof Controller	Optional	Optional	Optional
Protective Shield	Optional	Optional	Optional

introduce

Application Scenarios

1. Chemical Synthesis and Reaction Concentration
The Laboratory Rotary Evaporator is widely used for concentrating post-reaction mixtures during organic synthesis. The 3L flask capacity is ideal for handling medium-scale samples, and the adjustable 0–120 rpm rotation allows precise control over evaporation speed.

2. Natural Product Extraction and Essential Oil Recovery
In the fields of phytochemistry and herbal extraction, this rotary evaporator enables efficient solvent removal from plant-based extracts. The 0.26㎡ condenser ensures rapid condensation and high recovery rates, making it suitable for recovering delicate aromatic compounds.

3. Pharmaceutical Research and Drug Development
This unit plays a critical role in pharmaceutical formulation labs by assisting in the removal of solvents from active pharmaceutical ingredient (API) preparations. The customizable 0–99°C temperature range with ±1°C accuracy supports heat-sensitive compounds.

4. Food and Flavor Analysis
In food technology laboratories, the Laboratory Rotary Evaporator is used to concentrate flavors and separate volatile compounds. The 3L capacity allows flexible handling of various sample sizes, while the 2 kW heating power ensures timely evaporation without degradation.

5. Academic Research and Teaching Laboratories
Its user-friendly design and optional safety features make this rotary evaporator an excellent teaching tool for universities. Students and researchers benefit from hands-on training in distillation, separation, and purification techniques.

6. Environmental Testing and Waste Solvent Treatment
Environmental analysis labs use rotary evaporators to concentrate trace pollutants or separate solvents from waste samples. The precise evaporation control ensures accurate and reproducible results in analytical workflows.

7. Cosmetic and Fragrance Development
In cosmetic R&D, the rotary evaporator is applied to develop fragrance compositions and extract botanical ingredients. The robust 2 kW heating and efficient condenser enable high-throughput production of concentrated materials.
