Detailed Description
Key Features
Rotary Flask Capacity: 5L capacity provides ample space for large sample volumes, ideal for medium to high-volume evaporation.
Collection Flask Capacity: 3L capacity ensures effective collection of evaporated solvents.
Rotational Speed: Adjustable rotational speed range of 0–120 rpm for varying evaporation speeds based on application requirements.
Temperature Range: Operates within a temperature range of 0°C to 99°C, with precise control for optimal evaporation conditions.
Temperature Accuracy: Maintains temperature accuracy within ±1°C for reliable and consistent results.
Condenser Area: Features a condenser area of 0.26㎡ for efficient solvent condensation and recovery.
Manual Lift Structure: The manual lift structure allows easy and precise height adjustments for safe and flexible operation.
Technical Specifications
Rotary Flask Capacity: 5L
Collection Flask Capacity: 3L
Rotational Speed: 0–120 rpm
Temperature Range: 0–99°C (adjustable)
Temperature Accuracy: ±1°C
Condenser Area: 0.26㎡
Manual Lift Structure: Easy adjustment for height control
Power Supply: 220V 50/60 Hz
Compatible Equipment

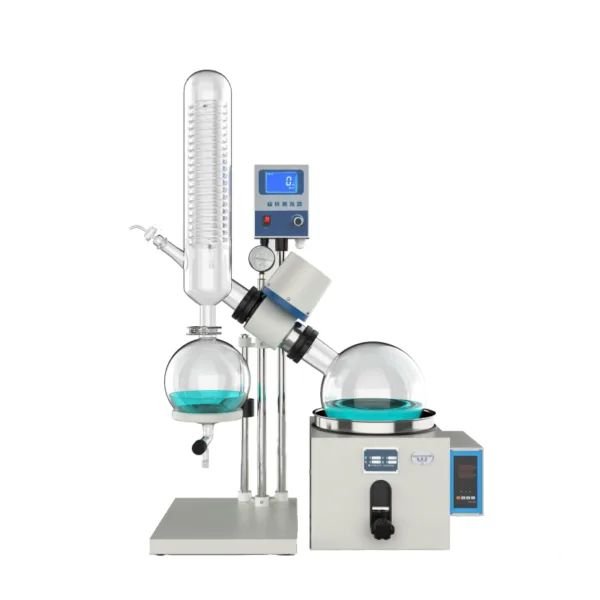

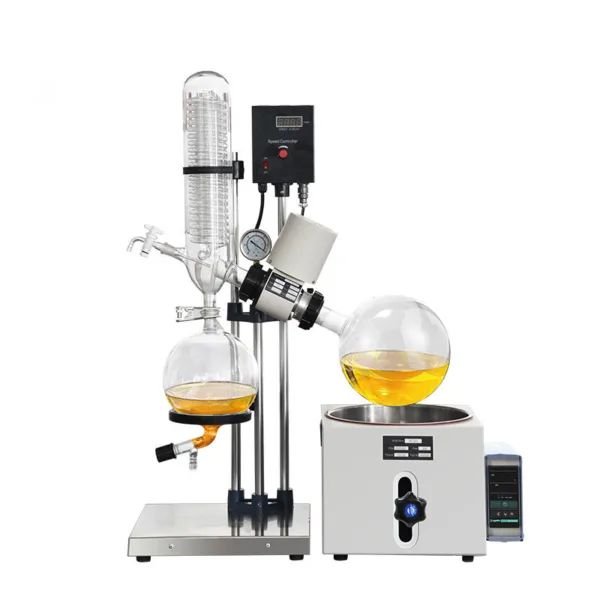

The AKRE-501 Manual Lift Rotary Evaporator is compatible with a variety of laboratory equipment for enhanced performance:
Vacuum Pumps: To assist in lowering the boiling point of solvents, enhancing the evaporation process.
Cooling Circulators: For maintaining consistent temperatures in the condenser during operation.
Chillers: To support cooling during evaporation, ensuring efficient solvent condensation.
Flask Holders: Compatible with various flask holders for stable and secure operation.
Highlighting Features
The manual lift mechanism is a key feature of the AKRE-501, providing easy and precise control over the height of the rotary flask. This manual adjustment feature enhances safety and convenience during operation, allowing users to optimize the evaporation setup. The adjustable speed range from 0 to 120 rpm ensures the flexibility to handle a variety of substances and evaporation speeds, making it ideal for both research and industrial applications.
Watch Product Demonstrations
Explore real-world performance and applications in our product demo videos. Visit our video library for more insights and demonstrations.
For more information on similar products, visit our Rotary Evaporator product category page.
Shipping Information
We provide worldwide shipping for all laboratory equipment. Every order is carefully packaged to ensure safe delivery. If the item is in stock, it will be shipped within 3–7 business days after payment confirmation. For out-of-stock items, we will inform you of the estimated shipping time based on the specific product.
Shipping Methods: DHL, FedEx, UPS, or sea freight (depending on order size and destination)
Estimated Delivery Time:
Asia: 5–10 business days
Europe & North America: 7–12 business days
South America & Africa: 10–15 business days
Sea freight: subject to actual transit time
Tracking: A tracking number will be provided via email once the shipment has been dispatched.
Customs & Duties: Buyers are responsible for any import taxes or customs duties required by their country or region.
For bulk orders, custom packaging, or special shipping arrangements, please contact our team for personalized assistance at lab@equilrxnlab.com.
Product specifications
| Parameter | AKRE-201 | AKRE-301 | AKRE-501 |
|---|---|---|---|
| Rotary Flask Capacity (L) | 1 | 3 | 5 |
| Collection Flask Capacity (L) | 1 | 2 | 3 |
| Rotating Speed (rpm) | 0-120 | 0-120 | 0-120 |
| Condenser Area (㎡) | 0.17 | 0.26 | 0.26 |
| Rotary Motor Power (W) | 40 | 40 | 40 |
| Heating Power (KW) | 1 | 2 | 2 |
| Vacuum Degree (Mpa) | 0.098 | — | — |
| Temperature Range | 0-99°C (customizable) | 0-99°C (customizable) | 0-99°C (customizable) |
| Temperature Accuracy | ±1°C | ±1°C | ±1°C |
| Power Supply | 220V/50Hz (customizable) | 220V/50Hz (customizable) | 220V/50Hz (customizable) |
| Explosion-proof Motor | Optional | Optional | Optional |
| Explosion-proof Controller | Optional | Optional | Optional |
| Protective Shield | Optional | Optional | Optional |
introduce
Application Scenarios
Organic Synthesis: The AKRE-501 Rotary Evaporator is ideal for solvent removal in organic chemistry experiments. With precise temperature control and adjustable rotational speed, it enables fast solvent evaporation, minimizing unwanted chemical reactions during organic synthesis.
Pharmaceutical Extraction: In pharmaceutical extraction and concentration processes, the AKRE-501 provides an efficient solvent recovery system. Its high evaporation performance ensures effective extraction of active pharmaceutical ingredients and improves recovery rates while reducing solvent loss.
Plant Extract Concentration: Perfect for concentrating plant extracts, especially when extracting natural compounds, essential oils, and more. The device’s precise temperature control ensures efficient solvent removal at low temperatures, preserving the integrity of plant-derived substances.
Food Analysis: In food quality control and analysis, the AKRE-501 is used for solvent recovery and concentration. It efficiently processes samples containing volatile solvents without compromising the food’s chemical composition, making it ideal for food safety testing.
Solvent Removal After Chemical Synthesis: After chemical synthesis, solvent recovery is a critical step in many experiments and production processes. The AKRE-501 efficiently evaporates solvents, minimizing environmental contamination and enhancing lab productivity.
Environmental Analysis and Testing: In environmental monitoring and pollutant analysis, the AKRE-501 effectively removes solvents while helping recover key chemicals, ensuring accurate and reliable results in environmental testing.
When paired with complementary equipment like low-temperature cooling pumps, vacuum pumps, and heating baths, the AKRE-501 offers a high-efficiency evaporation system for a wide range of laboratory and industrial applications. Whether for small-scale research or large-scale industrial use, the AKRE-501 can meet various operational needs.
peculiarity
Double-layer sealing ring
Dual sealing with PTFE and FKM (fluoroelastomer) Patented technology ensures high vacuum level
manual height adjustment handwheel
Manual height adjustment handwheel allows for smooth height changes as needed, preventing movement of the glass parts. Safe and easy to operate with precise temperature control.
bottom discharge port
Bottom discharge port made from high-density PTFE material. Long service life and resistant to wear.
bath controller for laboratory equipment
Bath controller with the bath and main unit separate, facilitating flexible configuration.
