Detailed Description

Key Features

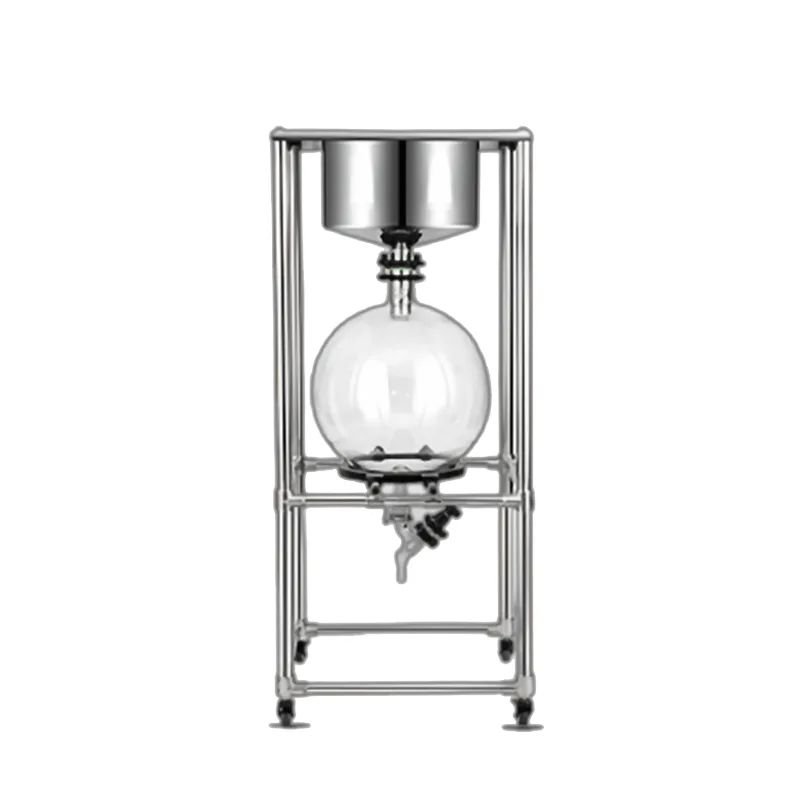

20L stainless steel funnel provides reliable vacuum filtration for medium to large batches
Spherical 20L GG-17 glass bottle ensures excellent chemical and thermal resistance
Three reaction ports allow for vacuum control, sampling, or in-line pressure monitoring
304 stainless steel tubing enhances vacuum strength and overall durability
Standard live plug valve enables safe and adjustable extraction control
Glass discharge valve with flange outlet ensures clean, residue-free liquid removal
Mobile design with universal casters improves handling and workspace flexibility

Technical Specifications

Funnel Volume: 20L (Stainless Steel Cloth Funnel)
Reaction Bottle Volume: 20L (Spherical GG-17 Glass)
Frame Material: Stainless Steel
Funnel Material: Stainless Steel
Tube Material: 304 Stainless Steel
Glass Material: GG-17 Borosilicate Glass
Reaction Port Count: Three Ports
Extraction Device: Standard Live Plug Valve
Discharge Method: Glass Discharge Valve, Flange Outlet
Mobility: Universal Casters for Laboratory Maneuverability

Compatible Equipment

Vacuum Pump: Delivers stable negative pressure for consistent filtration performance
Vacuum Regulator: Maintains precise control of vacuum level during filtration
Filtrate Collection Flask: Collects filtered liquid securely beneath the apparatus
Rubber Hose with Clamps: Ensures airtight vacuum lines and reliable operation
Cold Trap: Protects vacuum pump from vapors when filtering volatile or organic compounds

Performance Highlight

The Vacuum Filtration Apparatus offers reliable and repeatable filtration performance, making it ideal for researchers and production engineers who require clean separations and chemical compatibility. Its 20L funnel capacity supports mid-scale filtration tasks, while the vacuum-tight construction, three-port configuration, and smooth-discharge design ensure operational convenience and superior results in a wide range of lab environments.

Watch Product Demonstrations

Explore real-world performance and applications in our product demo videos. Visit our video library for more insights and demonstrations.

Explore More Options

Looking for more stainless steel vacuum filtration units? Visit our Vacuum Filtration Apparatus category page for other sizes and configurations.

Shipping Information

We provide worldwide shipping for all laboratory equipment. Every order is carefully packaged to ensure safe delivery. If the item is in stock, it will be shipped within 3–7 business days after payment confirmation. For out-of-stock items, we will inform you of the estimated shipping time based on the specific product.

Shipping Methods: DHL, FedEx, UPS, or sea freight (depending on order size and destination)
Estimated Delivery Time:

Asia: 5–10 business days
Europe & North America: 7–12 business days
South America & Africa: 10–15 business days
Sea freight: subject to actual transit time

Tracking: A tracking number will be provided via email once the shipment has been dispatched.
Customs & Duties: Buyers are responsible for any import taxes or customs duties required by their country or region.

For bulk orders, custom packaging, or special shipping arrangements, please contact our team for personalized assistance at lab@equilrxnlab.com.

Product specifications

High Pressure Reactor Equipment Specifications

Parameter	AKZK-10L	AKZK-20L	AKZK-30L	AKZK-50L
Funnel Volume (L)	10L Stainless Steel Cloth Funnel	20L Stainless Steel Cloth Funnel	30L Stainless Steel Cloth Funnel	50L Stainless Steel Cloth Funnel
Frame Material	Stainless Steel
Glass Material	GG-17
Tube Material	304 Stainless Steel
Reaction Bottle Volume	Spherical 10L	Spherical 20L	Spherical 30L	Spherical 50L
Funnel Material	Stainless Steel
Reaction Port Count	Three Ports
Extraction Device	Standard Live Plug Valve
Discharge Method	Glass Discharge Valve, Flange Outlet
Mobility	Equipped with universal casters

introduce

Application Scenarios

The Vacuum Filtration Apparatus is widely applicable across laboratories, research centers, and pilot-scale production environments where efficient solid-liquid separation is required. Below are typical use cases:

Pharmaceutical Laboratories
Used to filter crystallized compounds, active pharmaceutical ingredients, and fermentation residues under vacuum for enhanced purity and faster processing.
Chemical Synthesis and Analysis
Ideal for separating precipitates from reaction mixtures, especially in organic or inorganic synthesis workflows requiring controlled vacuum filtration.
Environmental Testing Labs
Employed for filtering soil extracts, water samples, or air particulate suspensions before analytical testing for pollutants or heavy metals.
Biotechnology and Life Sciences
Supports the separation of biomass, cell cultures, or protein precipitates while preserving biological activity through gentle vacuum filtration.
Food and Beverage Quality Control
Applied in filtering ingredients or sample preparations in product development and quality assurance processes to ensure consistency and cleanliness.
Educational and Research Institutions
Serves as a reliable training and testing tool in academic labs for teaching filtration techniques and conducting experimental chemistry or biology.

This Vacuum Filtration Apparatus offers dependable performance and excellent compatibility with a wide range of chemicals, making it a core tool in professional and academic filtration applications.
