Detailed Description
Key Features
Specialized for Petroleum Crude Oil Moisture Testing: Tailored for accurate separation of water and oil phases.
High-Speed Rotation: Operates up to 5000rpm with RCF 4250×g for fast and thorough petroleum crude oil moisture analysis.
Large Sample Throughput: Handles 8×100ml tubes per run—ideal for batch testing in petroleum labs.
Precision Control: ±20rpm speed accuracy ensures consistent petroleum crude oil moisture results.
Low Noise Design: ≤65dB operation minimizes disruption in lab environments.
Technical Specifications
Model: DL5Y
Max RPM: 5000 rpm
Max RCF: 4250 × g
Max Capacity: 8 × 100 ml
Chamber Diameter: φ500 mm
Revolutions/min Accuracy: ±20 rpm
Noise Level: ≤ 65 dB(A)
Timer: 1 – 99 min
Outer Dimensions: 825 × 625 × 910 mm
Package Dimensions: 930 × 730 × 1010 mm
Net Weight: 108 kg
Gross Weight: 128 kg
Voltage: AC 220V ±22V, 50Hz, 15A
Power: 1500 W
Recommended Compatible Equipment
Petroleum Crude Oil Moisture Separation Funnels – For precise post-centrifuge moisture collection.
Oil Sample Heating Units – To maintain consistent viscosity before crude oil moisture testing.
Digital Thermostats – Ensure accurate sample temperatures during petroleum crude oil moisture analysis.
Tight-Seal Glass Tubes – Prevent moisture loss during high-speed crude oil centrifugation.
Why Choose DL5Y for Petroleum Crude Oil Moisture Testing

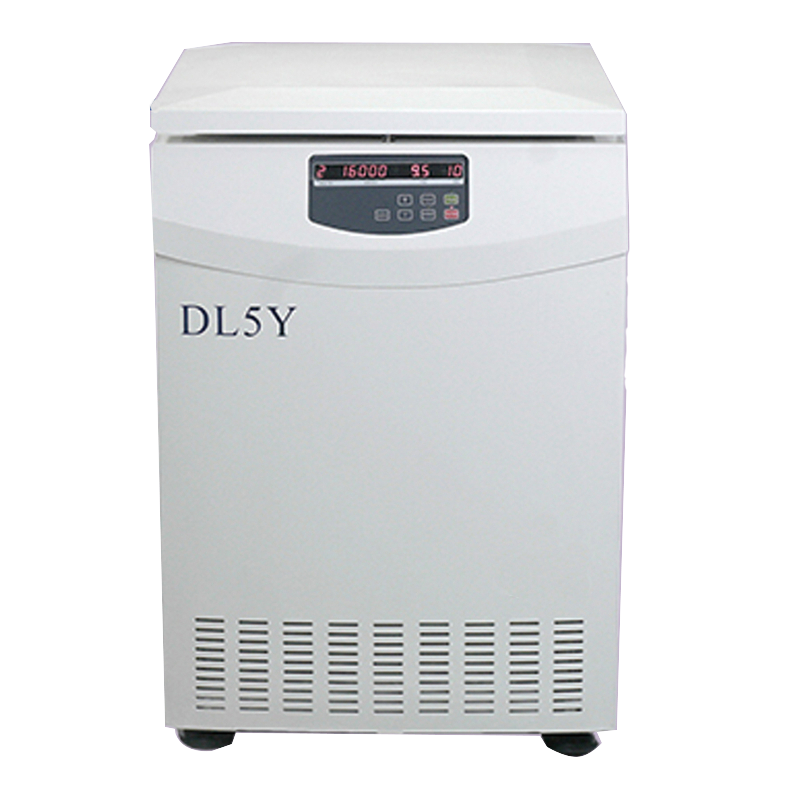

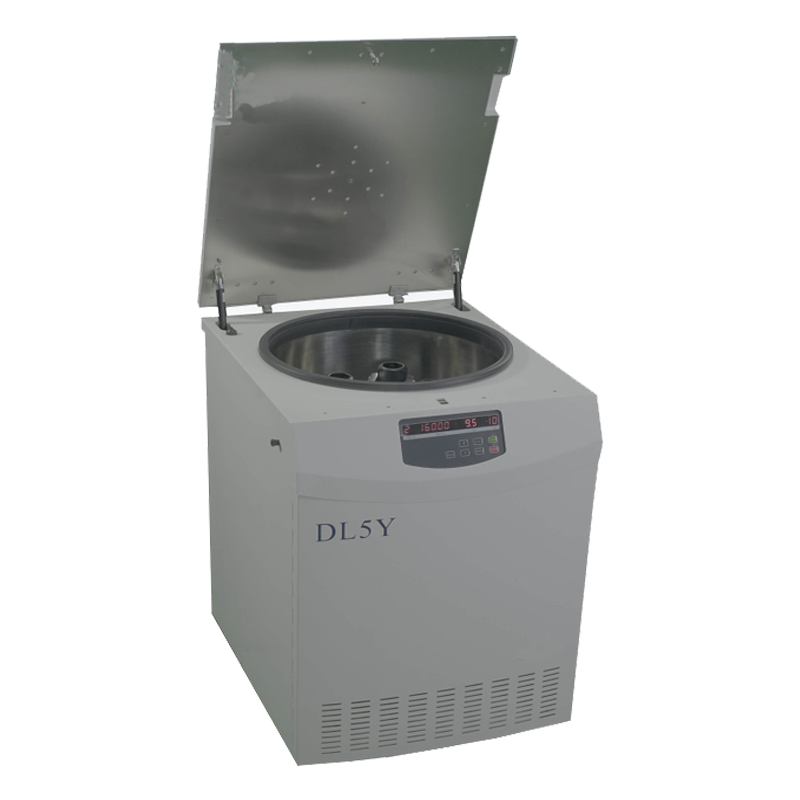

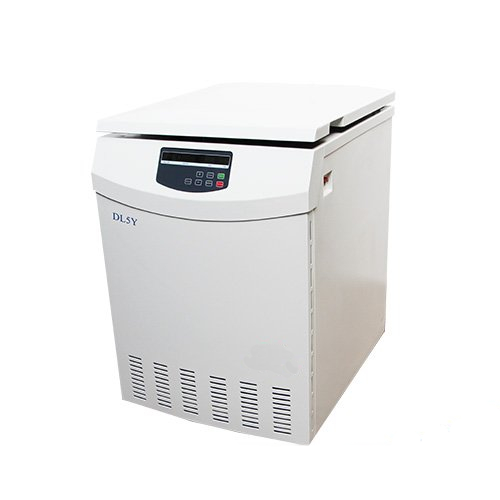

The DL5Y Centrifuge is a purpose-built solution for analyzing petroleum crude oil moisture levels in laboratory or field environments. Its high capacity and RCF make it an ideal tool for separating oil, water, and sediments. Laboratories working in petrochemical analysis trust the DL5Y to deliver fast, reproducible petroleum crude oil moisture results under strict quality requirements.
Watch Product Demonstrations
Explore real-world performance and applications in our product demo videos. Visit our video library for more insights and demonstrations.
Explore More Solutions
Discover more petroleum moisture testing centrifuges on our Crude Oil Centrifuge category page.
Shipping Information
We provide worldwide shipping for all laboratory equipment. Every order is carefully packaged to ensure safe delivery. If the item is in stock, it will be shipped within 3–7 business days after payment confirmation. For out-of-stock items, we will inform you of the estimated shipping time based on the specific product.
Shipping Methods: DHL, FedEx, UPS, or sea freight (depending on order size and destination)
Estimated Delivery Time:
Asia: 5–10 business days
Europe & North America: 7–12 business days
South America & Africa: 10–15 business days
Sea freight: subject to actual transit time
Tracking: A tracking number will be provided via email once the shipment has been dispatched.
Customs & Duties: Buyers are responsible for any import taxes or customs duties required by their country or region.
For bulk orders, custom packaging, or special shipping arrangements, please contact our team for personalized assistance at lab@equilrxnlab.com.
Technical Parameter
| Specification | Details |
|---|---|
| Model | DL5Y |
| Maximum Speed | 5000 rpm |
| Maximum RCF | 4250 × g |
| Chamber Diameter | φ500 mm |
| Maximum Capacity | 8 × 100 ml |
| Outer Dimensions | 825 × 625 × 910 mm |
| Timer Range | 1 min – 99 min |
| Package Dimensions | 930 × 730 × 1010 mm |
| Speed Accuracy | ±20 rpm |
| Net Weight | 108 kg |
| Voltage | AC 220V ±22V, 50Hz, 15A |
| Gross Weight | 128 kg |
| Power Consumption | 1500 W |
| Noise Level | ≤ 65 dB(A) |
Rotor Parameter
| Rotor Type | No. | Capacity | Speed / RCF |
|---|---|---|---|
| Swing-out Rotor | 1 | 24 × 10 ml | 5000 rpm / 3850 × g |
| Swing-out Rotor | 2 | 4 × 100 ml | 4000 rpm / 4250 × g |
| Swing-out Rotor | 3 | 8 × 100 ml | 4000 rpm / 4250 × g |
* All products can be customized, designed and produced according to customer requirements.
introduce
Application Scenarios
1. Oil Refinery Quality Control
DL5Y centrifuge is used in refineries to determine petroleum crude oil moisture content before processing or storage. Fast separation ensures accurate oil quality grading.
2. Oilfield Sample Stations
In upstream exploration, the centrifuge analyzes petroleum crude oil moisture in field-collected samples. Rugged design supports remote or mobile lab operations.
3. Third-Party Petroleum Testing Labs
Certified laboratories use DL5Y to provide independent petroleum crude oil moisture and sediment testing services to producers and transport companies.
4. Pipeline and Storage Facility Monitoring
To prevent corrosion and quality loss, DL5Y supports routine crude oil moisture testing during pipeline transfer or terminal storage.
5. Petrochemical R&D Institutes
R&D departments use this centrifuge for formulation testing, separating emulsions and analyzing petroleum crude oil moisture content during experimental trials.
6. Government or Customs Oil Inspection
Regulatory bodies apply DL5Y for standardized petroleum crude oil moisture tests during cross-border crude oil shipments or compliance inspections.
7. Offshore Drilling Platforms
Compact yet powerful, DL5Y is suitable for moisture testing in offshore platforms to provide real-time crude oil separation analysis under constrained conditions.
