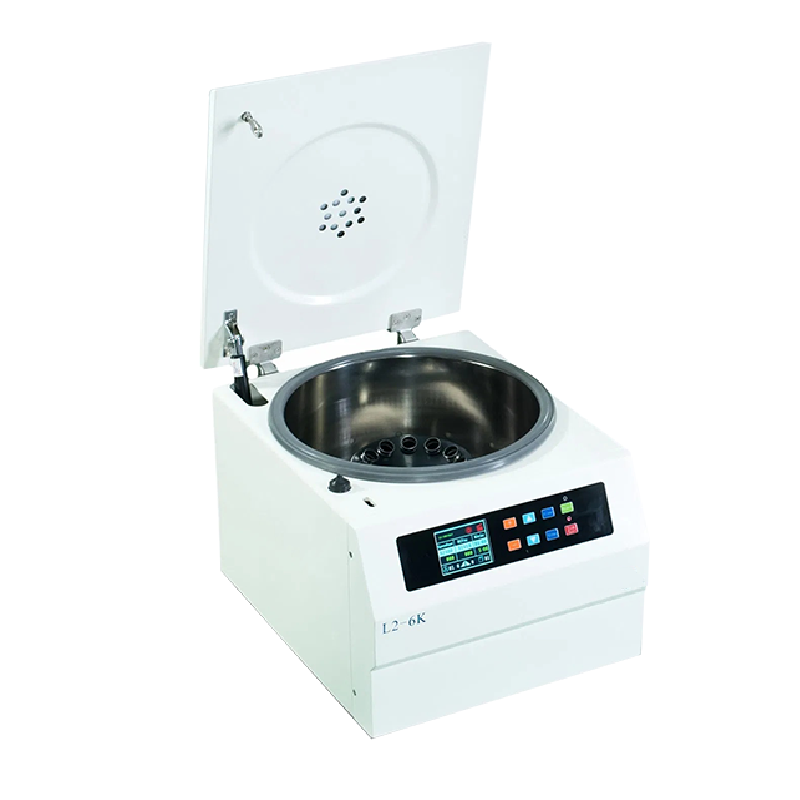

L2-6K Benchtop Low-Speed Bucket Centrifuge for Laboratory Applications – Reliable, Compact, and Versatile

The L2-6K Benchtop Low-Speed Bucket Centrifuge is a high-performance laboratory centrifuge designed for efficient separation of biological and chemical samples. Ideal for use in medical and research laboratories, it combines compact design, advanced features, and reliable performance.

Key Features:

Compact Size: Designed to save valuable laboratory space without sacrificing performance, the L2-6K is perfect for small to medium-sized labs.
Durable Construction: Built with a steel structure and a stainless steel centrifuge chamber, ensuring long-lasting durability and corrosion resistance.
Stable & Quiet Operation: Controlled by microcomputers with an AC frequency variable motor drive, the centrifuge operates smoothly and quietly, minimizing disruption in the lab environment.
User-Friendly LCD Display: Features a multi-color LCD screen for clear and direct viewing of parameters such as RPM, RCF, time, and temperature. You can adjust settings during operation without stopping the machine.
Real-Time RCF/RPM Display: Automatically calculates and displays both the centrifugal force (RCF) and rotational speed (RPM) simultaneously for accurate control.
Programmable Control: The centrifuge supports 10 types of acceleration/deceleration control and offers 40 programming spaces, allowing users to program and easily call up settings as needed.
Enhanced Safety Features: Equipped with an electronic door lock to ensure safety during operation and prevent accidents.
Wide Applications: Due to its excellent cost-performance ratio and reliable quality, the L2-6K is widely used in hospitals, research institutions, and medical laboratories for various routine and specialized applications.

The L2-6K Benchtop Low-Speed Bucket Centrifuge offers superior performance, flexibility, and safety features, making it an excellent choice for laboratories requiring precise and efficient sample separation.

Technical Parameter

Model L2-6K Specifications

Specification	Details
Model	L2-6K
Max RPM (rpm)	6000rpm
Noise Level	≤ 65dB（A）
Max RCF	4430×g
Chamber diameter	φ350mm
Max Capacity	4×100ml
Outer Dimensions	475×390×320mm
Timer	1min～99min
Outer Packing Dimensions	545×430×395mm
Revolutions/min	±20r/min
Net Weight	45kg
Voltage	AC 220V±22V，50/60Hz，10A
Gross Weight	55kg
Power	150W

Rotor Parameter

Rotor Specifications

Rotor	NO	Capacity	RPM/RCF
Angle Rotor (W)	1	6×50ml	6000rpm/4430×g
	2	12×10ml	5000rpm/4020×g
	3	12×15ml	5000rpm/4020×g
Angle Rotor
	4	12×10ml	4200rpm/2450×g
	5	12×15ml	4200rpm/2450×g
	6	12×20ml	4200rpm/2450×g
	7	18×10ml	4200rpm/2450×g
	8	24×10ml	4200rpm/2450×g
Swing-out Rotor (Y)	9	12/24×5ml	4200rpm/2450×g
	10	12/24×10ml	4200rpm/3100×g
	11	4/6×50ml	4200rpm/3100×g
	12	8/16×10/15ml	4200rpm/3100×g
	13	4×100ml	4200rpm/3100×g
Swing-out Rotor
	14	16×15ml + 4×50ml	4200rpm/3100×g
	15	4×50ml	4200rpm/3100×g

* All products can be customized, designed and produced according to customer requirements.

introduce

Scope of Application：

Clinical Laboratories
In clinical laboratories, the L2-6K Benchtop Low-Speed Bucket Centrifuge is used for processing blood, serum, and other biological samples. Its programmable settings and precise control over RCF and RPM ensure accurate separation of components, making it an essential tool for routine diagnostics and medical research.
Biochemistry and Biotechnology Research
This centrifuge is ideal for separating biomolecules, cells, and proteins in biochemistry and biotechnology research. Its ability to handle a variety of sample types efficiently makes it perfect for applications in drug development, cell culture, and molecular biology studies.
Pharmaceutical Laboratories
In pharmaceutical labs, the L2-6K is used for sample preparation in the testing and analysis of pharmaceutical products. Its large bucket capacity allows it to process bulk samples efficiently, helping researchers and quality control teams achieve high throughput without compromising on precision.
Blood Banks and Hematology
The L2-6K centrifuge is widely used in blood banks for separating plasma, serum, and other blood components. Its reliable operation and high separation efficiency make it a valuable tool in ensuring the safe handling of blood samples for transfusion and diagnostic purposes.
Environmental and Agricultural Labs
This centrifuge is also effective in environmental and agricultural labs where soil, water, or plant samples need to be processed for various analyses. Its capacity to handle large volumes ensures efficient separation, whether for pesticide residue testing or soil contamination studies.
Academic and Research Institutions
Universities and research institutions use the L2-6K for student training and various academic experiments. Its ease of use, flexibility in programming, and reliable performance make it an ideal choice for laboratory courses in microbiology, chemistry, and environmental science.
Veterinary and Animal Research
The L2-6K is suitable for veterinary clinics and animal research centers where blood and tissue samples are separated for diagnostic testing and research. Its large capacity and quiet operation make it perfect for processing samples from various animal species.
