Detailed Description
Key Features of Table Low Speed Refrigerated Centrifuge
Computer-controlled with AC frequency variable motor drive ensuring stable and quiet operation of the table low speed refrigerated centrifuge
Multi-color LED display showing RPM, eccentricity, temperature, and time for the table low speed refrigerated centrifuge
Allows parameter adjustment anytime during operation without stopping the table low speed refrigerated centrifuge
10 types of acceleration and deceleration control tailored for table low speed refrigerated centrifuge performance
Unique 9th control enabling free stopping time longer than 540 seconds to meet special sample requirements in the table low speed refrigerated centrifuge
Short spin press button for quick centrifugation on the table low speed refrigerated centrifuge
Electronic door lock and steel-protected inner chamber for safe operation of the table low speed refrigerated centrifuge
Secondary countdown display under one minute specific to the table low speed refrigerated centrifuge
Equipped with multiple rotor types and adaptors ideal for radioactive immunology, clinical medicine, biochemistry, pharmaceutics, and blood sample isolation using the table low speed refrigerated centrifuge
Technical Specifications

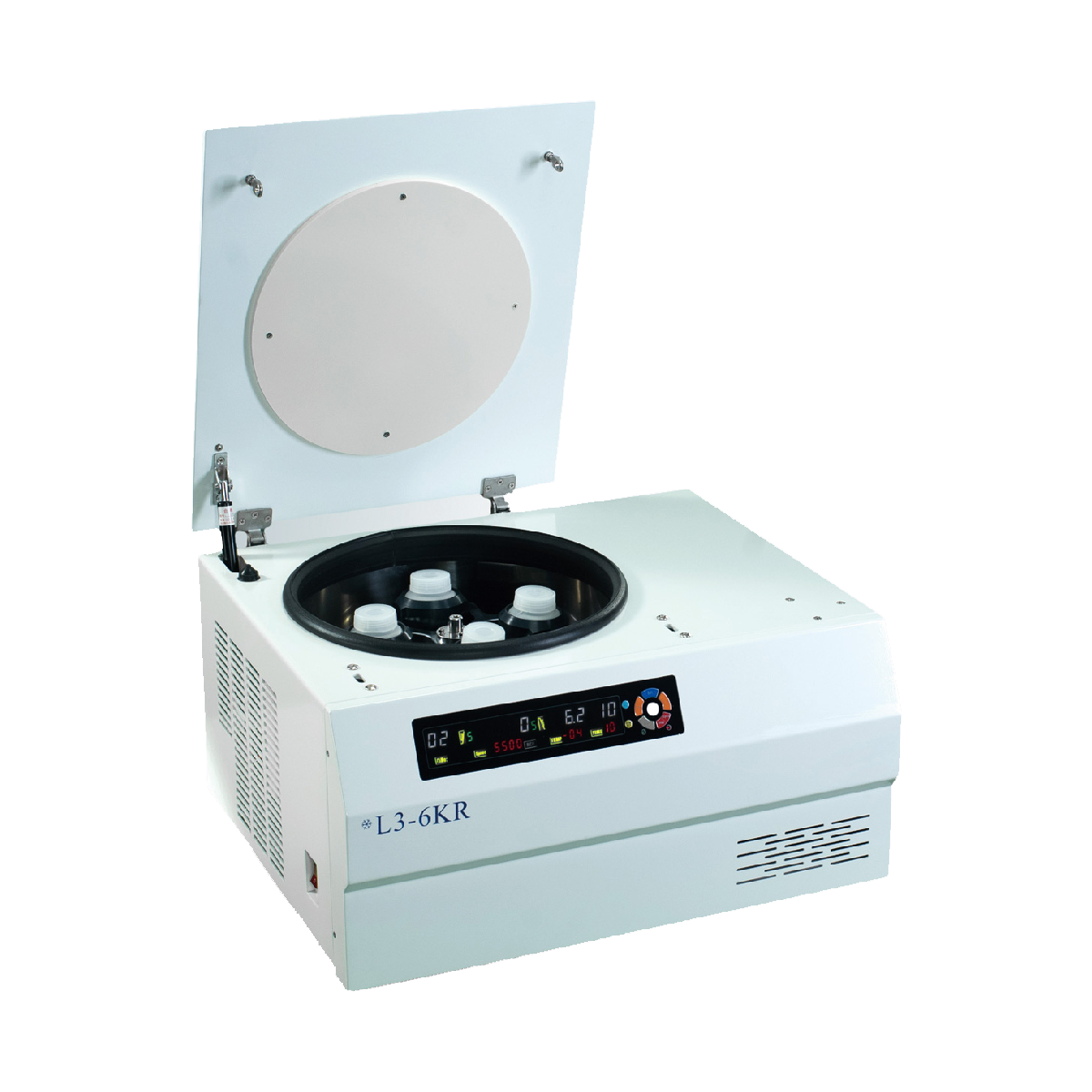

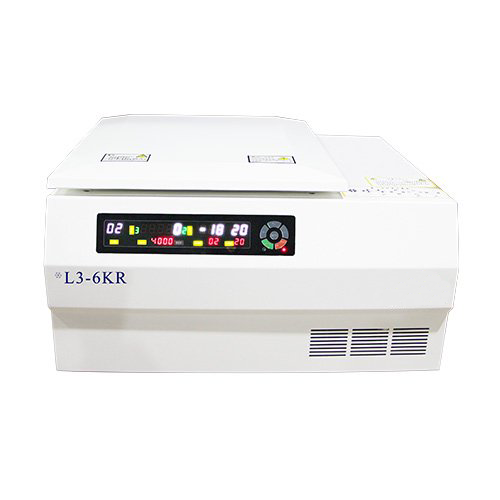

Model: L3-6KR
Max RPM: 6500 rpm
Max RCF: 5190 × g
Max Capacity: 4 × 250 ml
Noise Level: ≤ 65 dB(A)
Timer Range: 1 min – 99 min
Chamber Diameter: φ380 mm
Temperature Range: -20℃ to 40℃
Temperature Accuracy: ±2.0℃
Revolutions/Min Accuracy: ±20 r/min
Voltage: AC 220V ± 22V, 50 Hz
Power: 800 W
Outer Dimensions (W×D×H): 580 × 660 × 365 mm
Outer Packing Dimensions: 680 × 760 × 465 mm
Net Weight: 70 kg
Gross Weight: 85 kg
Compatible Equipment for Table Low Speed Refrigerated Centrifuge
Various rotor types and adaptors to expand the versatility of the table low speed refrigerated centrifuge
Refrigerated lab environments to maintain ideal conditions for samples processed by the table low speed refrigerated centrifuge
Laboratory monitoring systems for data integration from the table low speed refrigerated centrifuge
Sample preparation tools like pipettes and blood collection tubes to optimize workflows involving the table low speed refrigerated centrifuge
Emphasizing the Advantages of EquilRxnLab’s Table Low Speed Refrigerated Centrifuge
EquilRxnLab’s table low speed refrigerated centrifuge combines advanced computer control with innovative features to provide precise temperature regulation and reliable low-speed centrifugation. Its quiet operation, customizable acceleration profiles, and safety mechanisms such as electronic door locks make this table low speed refrigerated centrifuge an excellent choice for sensitive clinical and research applications, ensuring consistent and repeatable results.
Watch Product Demonstrations
Explore real-world performance and applications in our product demo videos. Visit our video library for more insights and demonstrations.
Explore More
Discover more about EquilRxnLab’s table low speed refrigerated centrifuge models on our Table Low Speed Refrigerated Centrifuge category page.
Shipping Information
We provide worldwide shipping for all laboratory equipment. Every order is carefully packaged to ensure safe delivery. If the item is in stock, it will be shipped within 3–7 business days after payment confirmation. For out-of-stock items, we will inform you of the estimated shipping time based on the specific product.
Shipping Methods: DHL, FedEx, UPS, or sea freight (depending on order size and destination)
Estimated Delivery Time:
Asia: 5–10 business days
Europe & North America: 7–12 business days
South America & Africa: 10–15 business days
Sea freight: subject to actual transit time
Tracking: A tracking number will be provided via email once the shipment has been dispatched.
Customs & Duties: Buyers are responsible for any import taxes or customs duties required by their country or region.
For bulk orders, custom packaging, or special shipping arrangements, please contact our team for personalized assistance at lab@equilrxnlab.com.
Technical Parameter
| Specification | Details |
|---|---|
| Model | L3-6KR |
| Max RPM | 6500rpm |
| Max RCF | 5190×g |
| Max Capacity | 4×250ml |
| Noise Level | ≤ 65dB（A） |
| Timer | 1min～99min |
| Chamber Diameter | φ380mm |
| Temperature Range | -20℃～40℃ |
| Temperature Accuracy | ±2.0℃ |
| Revolutions/min | ±20r/min |
| Voltage | AC 220±22V 50Hz |
| Power | 800W |
| Outer Dimensions | 580×660×365mm |
| Outer Packing Dimensions | 680×760×465mm |
| Net Weight | 70kg |
| Gross Weight | 85kg |
Rotor Parameter
| Type | No. | Capacity | RPM / RCF |
|---|---|---|---|
| Angle Rotor (W) | 1 | 6 × 50 ml | 6500 rpm / 5190 × g |
| Angle Rotor (W) | 2 | 12 × 10/15 ml | 6500 rpm / 5190 × g |
| Swing-out Rotor | 3 | 4 × 50/100 ml | 5000 rpm / 4390 × g |
| Swing-out Rotor | 4 | 8 × 50/100 ml | 4200 rpm / 3100 × g |
| Swing-out Rotor | 5 | 48 × 5/7 ml | 4200 rpm / 3100 × g |
| Swing-out Rotor | 6 | 64 × 5/7 ml | 4200 rpm / 3100 × g |
| Swing-out Rotor | 7 | 16 × 10/15 ml | 4200 rpm / 3100 × g |
| Swing-out Rotor | 8 | 24 × 10/15 ml | 4200 rpm / 3100 × g |
| Swing-out Rotor | 9 | 32 × 10/15 ml | 4200 rpm / 3100 × g |
| Swing-out Rotor | 10 | 48 tubes uncap basket Φ13×75–106 | 4000 rpm / 3500 × g |
| Swing-out Rotor | 11 | 4 × 250 ml | 4200 rpm / 3850 × g |
| Microplates Rotor | 12 | 2 × 2 × 96 holes | 4200 rpm / 2530 × g |
| Microplates Rotor | 13 | 2 × 2 × 48 holes | 4200 rpm / 1900 × g |
* All products can be customized, designed and produced according to customer requirements.
introduce
Application Scenarios
Clinical Diagnostics Laboratories
Used for the separation of serum, plasma, or other biological fluids at low speeds to ensure integrity of blood components. The precise temperature control prevents heat-induced degradation during centrifugation.Biochemistry and Molecular Biology Labs
Ideal for isolating enzymes, proteins, and organelles from cell lysates where low centrifugal force and stable cooling are critical to maintain biological activity.Pharmaceutical Quality Control
Applied during sample preparation in drug testing, stability studies, and formulation development, ensuring consistent temperature conditions for sensitive compounds.Immunology and Radioimmunoassay Labs
Supports the separation of immune complexes or radioactive-labeled substances under low-speed conditions to avoid sample denaturation.Blood Bank and Hematology Applications
Suitable for preparing washed red blood cells, platelet-rich plasma, or other blood fractions under controlled temperature to ensure sample stability and compliance with storage protocols.Food and Beverage Laboratories
Used in sample clarification, sediment separation, and content analysis of dairy, juice, or fermentation products where low centrifugal force is sufficient and temperature sensitivity matters.University and Research Institutions
The table low speed refrigerated centrifuge is frequently used in academic research for sample fractionation, protein purification, and experimental preparation involving temperature-sensitive materials.Environmental and Agricultural Testing
Useful in the processing of soil, water, and plant samples, enabling separation of particulate matter or analytes at controlled temperatures to maintain analyte integrity.
