Detailed Description
Key Features
Wide capacity range from 0.1L to 50L for R&D and pilot-scale use
High-pressure resistance up to 22 MPa for advanced synthesis reactions
Stable temperature control up to 350°C with advanced PID controller
High-torque mechanical stirring system ensures consistent mixing
Digital interface shows real-time speed, temperature, and voltage
Food-grade silicone seals provide resistance to high heat and corrosion
Manual or optional electric lift system enhances usability and safety
Optional PTFE lining for highly corrosive chemical compatibility
Durable 304/316L stainless steel body with flange connection design
Technical Specifications
Model: FCF Series
Reactor Volume: 0.1–0.25L / 0.5L / 1L / 2L / 5L / 10–20L / 30–50L
Max Pressure: ≤22 MPa
Max Temperature: ≤350°C
Stirring Speed: 10–800 rpm (≤2L), 10–500 rpm (5L and above)
Heating Method: Electric heating
Heating Power: 0.9–9 kW (varies by model)
Motor Power: 80–380 W (varies by model)
Lift Mode: Manual lift, optional electric lift
Material: 304/316L stainless steel, optional PTFE lining
Temperature Control: PID with real-time digital feedback
Recommended Compatible Equipment
Vacuum Pump System – for degassing prior to high-pressure reactions
High-Pressure Hydrogenation Gas Regulator – ensures safe gas handling
Cooling Circulator – supports rapid temperature drops post-reaction
Explosion-Proof Cabinet – enhances safety for high-pressure processes
Data Logger – for automated temperature and pressure recording
Designed for Safety and Scalability
With corrosion-resistant stainless steel construction, high-grade silicone seals, and automatic PID temperature control, this reactor is ideal for chemists and researchers seeking reliable results in high-stakes environments. The modular design allows easy upgrades and adaptability from lab scale to pilot production.
Watch Product Demonstrations
Explore real-world performance and applications in our product demo videos. Visit our video library for more insights and demonstrations.
Explore More Stirring and Heating High-Pressure Reactor Options
View the full range of our Stirring and Heating High-Pressure Reactors on the product category page
Shipping Information
We provide worldwide shipping for all laboratory equipment. Every order is carefully packaged to ensure safe delivery. If the item is in stock, it will be shipped within 3–7 business days after payment confirmation. For out-of-stock items, we will inform you of the estimated shipping time based on the specific product.
Shipping Methods: DHL, FedEx, UPS, or sea freight (depending on order size and destination)
Estimated Delivery Time:
Asia: 5–10 business days
Europe & North America: 7–12 business days
South America & Africa: 10–15 business days
Sea freight: subject to actual transit time
Tracking: A tracking number will be provided via email once the shipment has been dispatched.
Customs & Duties: Buyers are responsible for any import taxes or customs duties required by their country or region.
For bulk orders, custom packaging, or special shipping arrangements, please contact our team for personalized assistance at lab@equilrxnlab.com.
Product specifications
| Parameter | FCF-0.1-0.25 | FCF-0.5 | FCF-1 | FCF-2 | FCF-5 | FCF-10-20 | FCF-30-50 |
|---|---|---|---|---|---|---|---|
| Reactor Volume (L) | 0.1-0.25 | 0.5 | 1 | 2 | 5 | 10-20 | 30-50 |
| Pressure Range (MPa) | ≤22 | ||||||
| Temperature Range (°C) | ≤350 | ||||||
| Heating Method | Electric Heating | ||||||
| Heating Power (kW) | 0.9 | 1.5 | 2 | 4 | 6 | 9 | |
| Stirring Speed (r/min) | 10-800 rpm | 10-500 rpm | |||||
| Motor Power (W) | 80 | 150 | 380 | Varies by model | |||
| Temperature Control | Real-time display of speed, temperature, working time, heating voltage with PID automatic temperature controller for stable temperature control. Optional electronic motor and microcomputer control for enhanced precision. | ||||||
| Operating Environment | Ambient temperature 0-50°C, relative humidity 30%-85%, no flammable or explosive gases around. | ||||||
| Lift Mode | FCF model features manual lift, with optional electric lift. | ||||||
| Material | 304/316L Stainless Steel, optional PTFE lining. | ||||||
introduce
Application Scenarios
The FCF Stirring and Heating High-Pressure Reactor is designed for various laboratory and industrial applications, particularly for chemical reactions requiring precise control over high temperature and high-pressure environments. Its high-performance design ensures stability and consistency under demanding conditions, making it ideal for the following areas:
Chemical Synthesis
Ideal for complex chemical synthesis processes, including catalytic reactions, polymerization reactions, and solvent chemistry. Under high-pressure conditions, the reactor provides uniform mixing and precise temperature control, ensuring efficient conversion of reactants.Materials Research and Development
In materials science, especially for the synthesis and characterization of materials under high-temperature and high-pressure conditions, the FCF reactor offers the precision required for developing new high-performance materials, nanomaterials, superconductors, and more.Pharmaceutical Production
The FCF reactor is highly suited for pharmaceutical synthesis and production under high-pressure reactions. Its precise thermal control and stirring system ensure repeatability and stability in drug synthesis processes, especially when dealing with high-viscosity or solid-liquid mixtures.Catalyst Research and Applications
The high-pressure reactor is particularly beneficial for catalyst development and testing, allowing researchers to simulate real reaction conditions and assess catalysts’ performance under extreme temperatures and pressures. This is crucial for industries like petrochemicals, environmental protection, and energy.Environmental Research and Treatment
The reactor is used in environmental protection technologies, especially in waste gas and wastewater treatment. Its precise control under high-temperature and high-pressure conditions makes it suitable for the degradation and treatment of various pollutants.Oil and Gas Industry
Suitable for oil refining, natural gas conversion, and other petrochemical processes involving high-pressure chemical reactions. Its high pressure tolerance and stable performance make it an indispensable tool in the oil and gas industry.
peculiarity

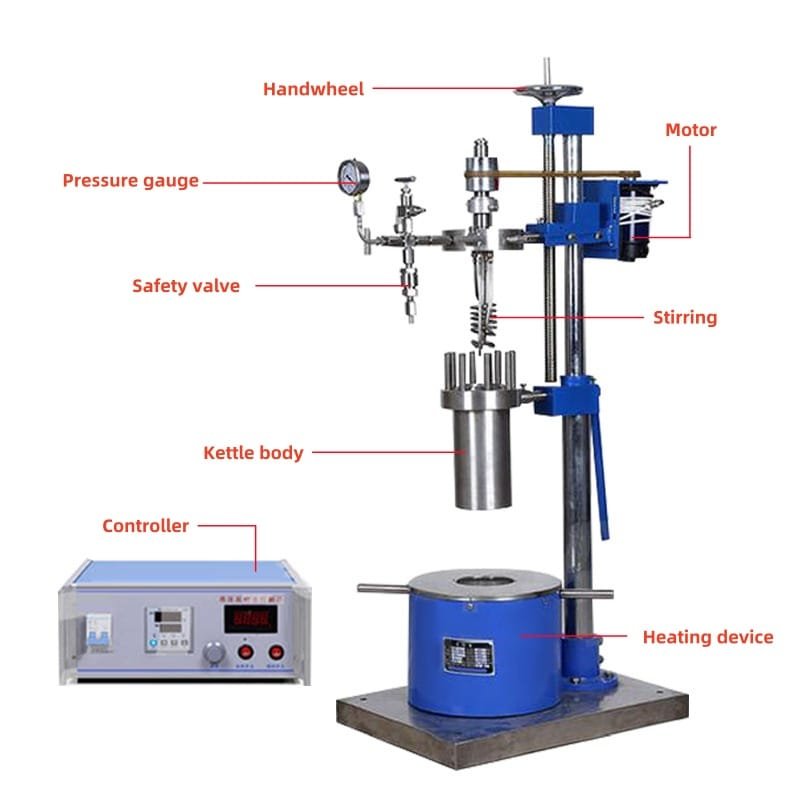

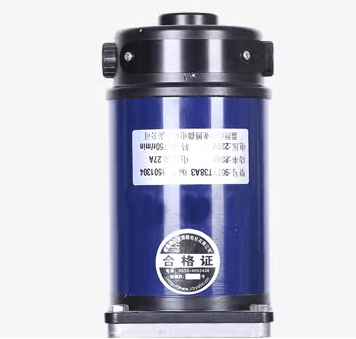

Agitator motor
High power motor, strong and stable performance!
Pressure Gauge
Real-time Monitoring of Reaction Pressure in the Vessel
Stainless Steel Reactor Lid
Equipped with Inlet Valve, Sampling Valve, Exhaust Valve, Pressure Gauge, and Temperature Probe
Controller with intelligent digital display
Intelligent digital temperature controller with automatic temperature control function
