The Importance of Understanding Single Glass Reactor Specifications
In any laboratory setting, a single glass reactor is a crucial tool for conducting chemical reactions that require precise temperature, pressure, and mixing control. Whether used in pharmaceutical development, chemical research, or industrial production, understanding the single glass reactor specifications is essential to select the best equipment for your experiments.
Each reactor model comes with a set of features that defines its performance capabilities, including factors like capacity, material construction, temperature control, and more. This article explores the single glass reactor specifications in depth, helping laboratory professionals make informed choices about the equipment they use.
Key Specifications of Single Glass Reactors

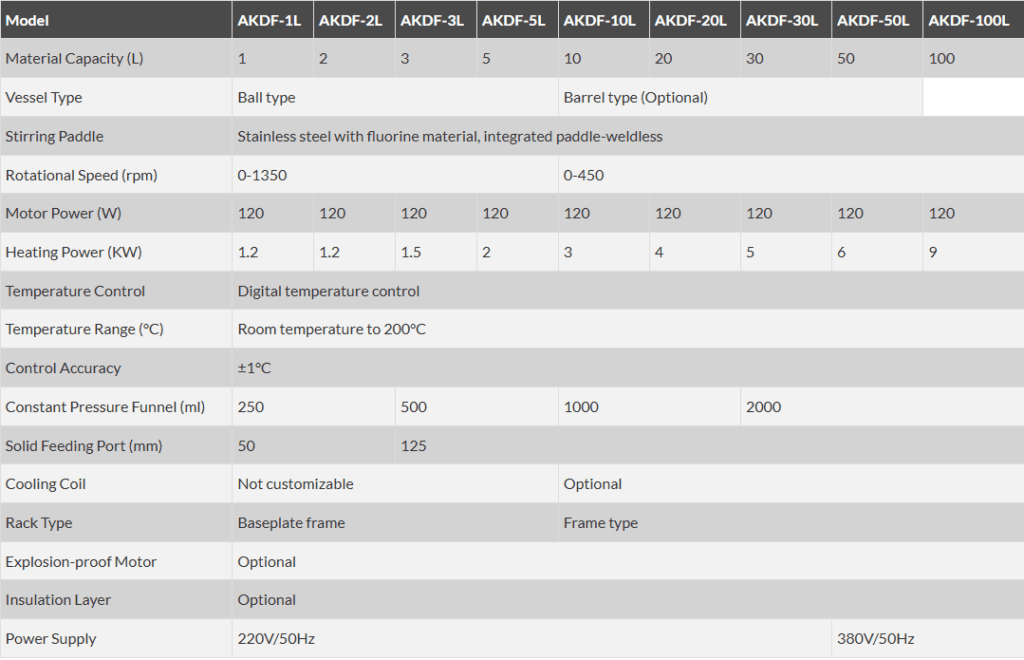

Single glass reactors come with a range of specifications that influence their performance. Here are the most important factors to consider when selecting a reactor for your lab:
1. Material and Capacity
The material and capacity of a single glass reactor play a crucial role in its suitability for various applications. EquilRxnLab offers a variety of reactors with capacities ranging from 1L to 100L. The most common materials used are high-quality borosilicate glass, which provides excellent chemical resistance and thermal stability.
The right capacity depends on the volume of your chemical reactions. Smaller reactors (1L to 5L) are ideal for research, while larger ones (20L to 100L) are suited for industrial applications.
2. Stirring and Mixing Mechanisms
Effective stirring is critical to ensure uniform mixing during the reaction process. Single glass reactors come with different stirring mechanisms, with EquilRxnLab reactors featuring integrated stainless steel paddles. These paddles are made with fluorine material, ensuring they are resistant to corrosion from various chemicals.
- The rotational speed of the stirring paddle is adjustable, typically ranging from 0-1350 rpm for smaller models (1L to 5L) and 0-450 rpm for larger models (10L to 100L).
3. Temperature Control
Accurate temperature control is essential for many reactions. Single glass reactors feature digital temperature control, allowing precise regulation of the reaction environment. EquilRxnLab reactors have a temperature range from room temperature to 200°C with a control accuracy of ±1°C.
- The heating power varies depending on the model, with smaller reactors (1L to 5L) having heating power between 1.2 kW and 2 kW, while larger models (50L and above) can reach up to 9 kW.
4. Pressure and Safety Considerations
Pressure resistance is a key feature of single glass reactors. For reactions that require controlled pressure, EquilRxnLab reactors come with options such as constant pressure funnels (ranging from 250mL to 2000mL), as well as explosion-proof motors and optional insulation layers for added safety.
- A single glass reactor‘s ability to handle pressure depends on its design and materials, with some models offering customizable cooling coils to ensure safe temperature management during high-pressure reactions.
5. Additional Features and Customizations
Many reactors come with additional features like customizable cooling coils and rack types. EquilRxnLab offers baseplate frame and frame-type rack options, allowing users to choose the setup that best suits their lab environment.
- For laboratories handling volatile substances, the explosion-proof motor option provides an additional layer of safety. Insulation layers can also be added for increased temperature stability.
Exploring the Specifications of the AKDF-50L Single Glass Reactor
The AKDF-50L Water Bath and Oil Bath Single Layer Glass Reactor from EquilRxnLab is an excellent example of a high-performance reactor that meets the specifications required for larger-scale laboratory processes. Here’s a closer look at its specifications:
- Capacity: 50L, ideal for medium to large-scale applications.
- Material: Borosilicate glass for excellent chemical resistance and durability.
- Stirring Paddle: Stainless steel with fluorine material for corrosion resistance.
- Rotational Speed: 0-450 rpm for controlled mixing.
- Heating Power: 6 kW for efficient heating.
- Temperature Range: Room temperature to 200°C with ±1°C accuracy.
- Safety Features: Explosion-proof motor (optional) and optional insulation layer.
For a complete list of available reactors, check out EquilRxnLab’s product catalog here.
How to Choose the Right Reactor Based on Specifications
When selecting a single glass reactor, it’s essential to match the specifications to the specific needs of your laboratory application:
- Match Capacity to Reaction Scale: Consider the scale of your reactions. Smaller capacities (1L to 10L) are sufficient for research and development, while larger reactors (20L to 100L) are ideal for industrial processes.
- Assess Temperature and Pressure Requirements: Make sure the reactor can handle the temperature and pressure conditions required for your reactions. Higher heating power and pressure resistance are essential for larger, more complex reactions.
- Consider Stirring Speed and Efficiency: For reactions that require intense mixing, choose reactors with higher rotational speeds. Ensure the stirring mechanism is durable and resistant to chemical corrosion.
- Evaluate Safety Features: Depending on the chemicals being used, safety features such as explosion-proof motors and insulation layers might be necessary to ensure a safe reaction environment.
Selecting the right single glass reactor is critical for optimizing reaction efficiency, safety, and overall laboratory productivity. Understanding the single glass reactor specifications—from capacity and material construction to temperature control and safety features—ensures that the reactor chosen meets the needs of your lab’s applications.
For more detailed information on single glass reactor specifications, explore the AKDF-50L Water Bath and Oil Bath Single Layer Glass Reactor at EquilRxnLab, or browse our full product catalog for more options. Stay connected with us via YouTube, Instagram, and Facebook.
This comprehensive understanding of single glass reactor specifications ensures that you choose the best equipment for your laboratory’s needs, guaranteeing both performance and safety during chemical processes.
